Name: Festo 192218 End position controller SPC11-MTS-AIF
Brand: Festo

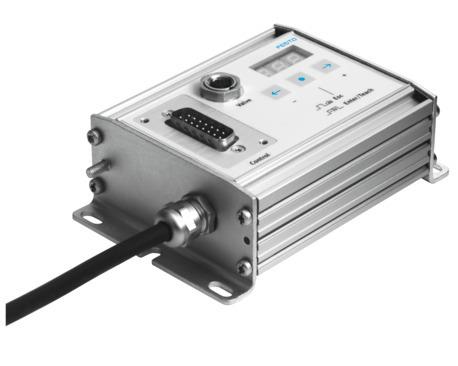

End position controller SPC11-MTS-AIF

The Festo 192218 is an industrial component featuring a red 3-digit 7-segment display, a touch-sensitive keyboard with 3 keys, and flash memory data backup. It operates on a 24 V DC nominal operating voltage with permissible voltage fluctuations of +/- 25% and includes 8 digital inputs and 5 digital outputs of positive logic PNP type complying with IEC 61131-2. Certified with the RCM compliance mark and carrying CE and UKCA markings for EMC and RoHS directives, the unit withstands continuous shock tested to DIN/IEC 68 Part 2-82 severity level 2. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 192218
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 192218.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Data backup: Flash memory
Control signals: Remote/teach input/left/right | Input, position 1/2/3/4 | Error-Ready output | Output, position 1/2/3/4
Display: 3 digit | Color red | 7-segment display
Control elements: 3 keys | Touch sensitive keyboard
Fuse protection for outputs: Electronic | Max. tripping current 500 mA | Via sum of all outputs
Number of digital outputs: 5
Number of digital inputs: 8
Outputs type: As per IEC 61131-2 | Positive logic (PNP) | No galvanic isolation
Design of inputs: As per IEC 61131-2 | Positive logic (PNP) | No galvanic isolation
Debounce time at inputs: 20 ms
Max. current consumption with proportional valve: 1.1 A
Max. current consumption without proportional valve: 70 mA
Nominal operating voltage DC: 24 V
Input current consumption: 4 mA
Current rating per output: 0.1 A
Permissible voltage uctuations: +/- 25%
Certication: RCM compliance mark
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Continuous shock resistance to DIN/IEC 68 Part 2-82: Tested as per severity level 2
LABS (PWIS) conformity: VDMA24364-B2-L

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 192218. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
