Festo
1922618

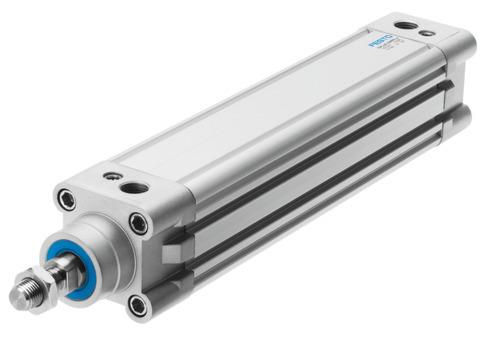

ISO cylinder DNC-32-30-PPV-A
This Festo industrial component (Part Number 1922618) is a double-acting pneumatic cylinder featuring a 32 mm piston diameter, a 30 mm stroke, and an M10x1.25 piston rod thread conforming to ISO 15552. It operates within a pressure range of 0.06 MPa to 1.2 MPa and an ambient temperature range of -20 °C to 80 °C, utilizing compressed air as per ISO 8573-1:2010 [7:4:4] with adjustable pneumatic cushioning at both ends. The profile barrel design includes position sensing via proximity switch, a corrosion resistance class of CRC 2, and delivers a theoretical retracting force of 415 N at 6 bar. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1922618
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1922618.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 30 mm
- Piston diameter
- 32 mm
- Piston rod thread
- M10x1.25
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.06 MPa...1.2 MPa | 0.6 bar...12 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.1 J
- Cushioning length
- 20 mm
- Theoretical force at 6 bar, retracting
- 415 N
- Theoretical force at 6 bar, advancing
- 483 N
- Moving mass at 0 mm stroke
- 162 g
- Additional moving mass per 10 mm stroke
- 9 g
- Basic weight with 0 mm stroke
- 517 g
- Additional weight per 10 mm stroke
- 30 g
- Type of mounting
- With internal thread | With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Cover material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1922618. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
