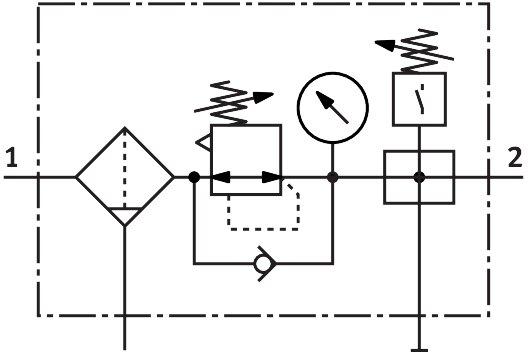

Reference imageConfirm configuration by manufacturer part number.
Festo
192444
Service unit LFR-1/2-D-DI-MAXI-KE
The Festo part number 192444 is a Maxi size D-series industrial component featuring a structural design of a branching module, pressure switch, and filter regulator with a pressure gauge. It operates within a pressure range of 0.1 MPa to 1.6 MPa (1 bar to 16 bar / 14.5 psi to 232 psi) and regulates pressure between 0.05 MPa and 1.2 MPa (0.5 bar to 12 bar / 7.25 psi to 174 psi) using a rotary knob actuator lock with detent. This unit includes a manual rotating condensate drain with a 43 cm³ max condensate volume, a metal bowl guard, a 40 µm filtration grade, and operates in medium and ambient temperatures from -10 °C to 60 °C when mounted vertically within ±5°. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 192444
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 192444.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Maxi
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical ±5°
- Grade of ltration
- 40 µm
- Condensate drain
- Manual, rotating
- Structural design
- Branching module | Pressure switch | Filter regulator with pressure gauge
- Max. condensate volume
- 43 cm³
- Bowl guard
- Metal bowl guard
- Pressure gauge
- with pressure gauge
- Operating pressure
- 0.1 MPa...1.6 MPa | 1 bar...16 bar | 14.5 psi...232 psi
- Pressure regulation range MPa
- 0.05 MPa...1.2 MPa
- Pressure regulation range
- 0.5 bar...12 bar
- Pressure regulation range psi
- 7.25 psi...174 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [6:8:4] | Inert gases
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 2600 g
- Type of mounting
- Alternatively: | In-line installation | With accessories
- Pneumatic connection 1
- G1/2
- Pneumatic connection 2
- G1/2
- Housing material
- Die-cast zinc
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 192444. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
