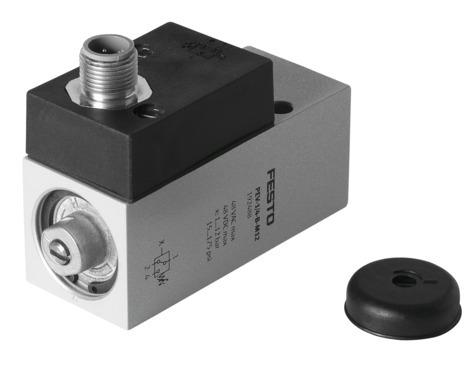

Name: Festo 192488 Pressure switch PEV-1/4-B-M12
Brand: Festo

Pressure switch PEV-1/4-B-M12

The Festo part number 192488 is a pneumatic/electric pressure transducer designed for measuring relative pressure using compressed air as per ISO 8573-1:2010 [7:-:-] or water within an operating pressure range of 0.1 MPa to 1.2 MPa (1 bar to 12 bar). It features a changeover switch switching element function with a maximum switching frequency of 3 Hz, supporting max switching output voltages of 48 V AC/DC and a max output current of 4000 mA. Certified by CCC, c UL us-recognized (OL), and rated for ATEX Zone 1, 2, 21, and 22 explosion prevention, this RoHS compliant component conforms to EN 60947-5-1 while operating at medium and ambient temperatures from -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 192488
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 192488.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Conforms to standard: EN 60947-5-1
Certication: CCC | c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU low voltage directive
UKCA marking (see declaration of conformity): To UK instructions for electrical equipment
Explosion prevention and protection: Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Note on materials: RoHS compliant
Measured variable: Relative pressure
Method of measurement: Pneumatic/electric pressure transducer
Operating pressure: 0.1 MPa...1.2 MPa | 1 bar...12 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Temperature of medium: -20 °C...80 °C
Ambient temperature: -20 °C...80 °C
Switching element function: Changeover switch
Max. switching frequency: 3 Hz
Max. switching output voltage AC: 48 V
Max. switching output voltage DC: 48 V
Max. output current: 4000 mA
Minimum load current: 1 mA at 24 V | 10 mA at 10 V | 100 mA at 5V
Utilization category for inductive load: AC-14 | DC-13
Utilization category for ohmic load: AC-12 | DC-12
Electrical connection: 4-pin | M12x1

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 192488. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
