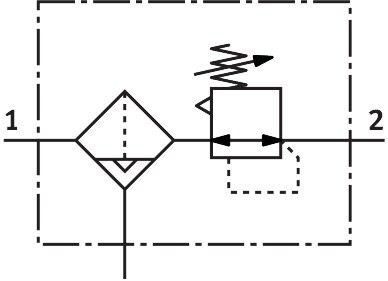

Reference imageConfirm configuration by manufacturer part number.
Festo
192603
Filter regulator LFR-1/4-D-7-O-MIDI-A
The Festo 192603 is a Midi size D-series filter regulator featuring a rotary knob with detent actuator lock, a fully automatic condensate drain, and a 43 cm³ max condensate volume with a metal bowl guard. Operating within a 2 bar to 12 bar pressure range and delivering a 2100 l/min normal nominal flow rate, this unit provides 40 µm filtration for compressed air per ISO 8573-1:2010 [7:9:-] or inert gases. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 192603
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 192603.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Midi
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical ±5°
- Grade of ltration
- 40 µm
- Condensate drain
- Fully automatic
- Structural design
- Filter regulator without pressure gauge
- Max. condensate volume
- 43 cm³
- Bowl guard
- Metal bowl guard
- Pressure gauge
- Set up for G1/4
- Operating pressure
- 0.2 MPa...1.2 MPa | 2 bar...12 bar
- Pressure regulation range
- 0.5 bar...7 bar
- Max. pressure hysteresis
- 0.2 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 2100 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:9:-] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:8:4] | Inert gases
- Temperature of medium
- 5 °C...60 °C
- Ambient temperature
- 5 °C...60 °C
- Product weight
- 900 g
- Type of mounting
- Alternatively: | In-line installation | With accessories
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Note on materials
- RoHS compliant
- Housing material
- Die-cast zinc
