192617

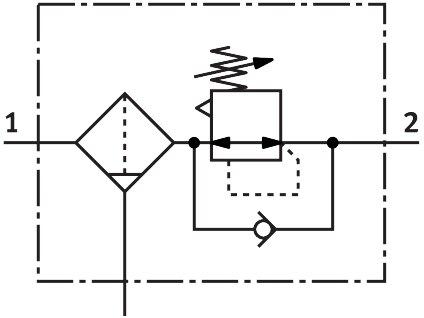

Name: Festo 192617 Filter regulator LFR-1/2-D-5M-O-MAXI
Brand: Festo

Filter regulator LFR-1/2-D-5M-O-MAXI

The Festo 192617 is a Maxi-size Series D filter regulator featuring a 5 µm filtration grade, a manual rotating condensate drain with an 80 cm³ max condensate volume, and a metal bowl guard. It operates within a 1 bar to 16 bar pressure range, offers a 0.5 bar to 12 bar pressure regulation range with a 0.4 bar max pressure hysteresis, and delivers a normal nominal flow rate of 7500 l/min for compressed air as per ISO 8573-1:2010 [-:9:-] or inert gases. Configured with a rotary knob with detent actuator lock, G1/4 pressure gauge setup, and vertical ±5° mounting position, this component achieves CRC 2 moderate corrosion stress resistance and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 192617
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 192617.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: Maxi
Series: D
Actuator lock: Rotary knob with detent
Mounting position: Vertical ±5°
Grade of ltration: 5 µm
Condensate drain: Manual, rotating
Structural design: Filter regulator without pressure gauge
Max. condensate volume: 80 cm³
Bowl guard: Metal bowl guard
Pressure gauge: Set up for G1/4
Operating pressure: 0.1 MPa...1.6 MPa | 1 bar...16 bar
Pressure regulation range: 0.5 bar...12 bar
Max. pressure hysteresis: 0.4 bar
Normal nominal ow rate (normalized to DIN 1343): 7500 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [-:9:-] | Inert gases
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -10 °C...60 °C
Air quality class at the output: Compressed air as per ISO 8573-1:2010 [6:8:4] | Inert gases
Temperature of medium: -10 °C...60 °C
Ambient temperature: -10 °C...60 °C
Product weight: 1370 g
Type of mounting: Alternatively: | In-line installation | With accessories
Pneumatic connection 1: G1/2
Pneumatic connection 2: G1/2
Note on materials: RoHS compliant
Housing material: Die-cast zinc

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 192617. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
