Festo
192637
Service unit FRC-1/2-D-7-O-MAXI
The Festo part number 192637 is a Series D Maxi industrial component featuring a filter regulator without a pressure gauge and a proportional standard oil mist lubricator, structured with a manual rotating condensate drain and a metal bowl guard. Operating at a pressure range of 1 bar to 16 bar with a 40 µm grade of filtration and a normal nominal flow rate of 7700 l/min, this unit functions within a temperature range of -10 °C to 60 °C. It includes an actuator lock with a rotary knob with detent, is set up for a G1/4 pressure gauge, and weighs 2390 g while maintaining a vertical ±5° mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 192637
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 192637.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Maxi
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical ±5°
- Condensate drain
- Manual, rotating
- Structural design

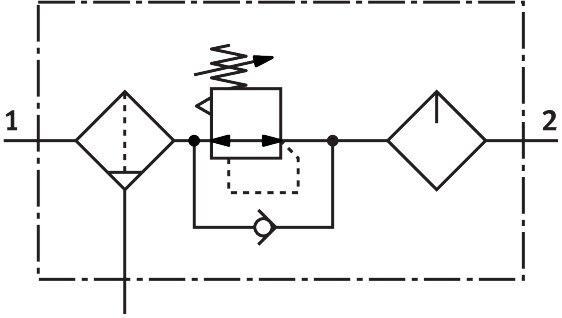

- Filter regulator without pressure gauge | Proportional standard oil mist lubricator
- Max. condensate volume
- 80 cm³
- Grade of ltration
- 40 µm
- Bowl guard
- Metal bowl guard
- Pressure gauge
- Set up for G1/4
- Operating pressure
- 0.1 MPa...1.6 MPa | 1 bar...16 bar
- Pressure regulation range
- 0.5 bar...7 bar
- Max. pressure hysteresis
- 0.04 MPa | 0.4 bar | 5.8 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 7700 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 2390 g
- Type of mounting
- In-line installation | With accessories
- Pneumatic connection 1
- G1/2
- Pneumatic connection 2
- G1/2
- Housing material
- Die-cast zinc
- Material of bowl
- PC
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 192637. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
