192662

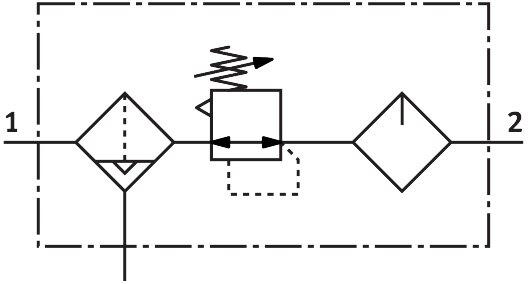

Name: Festo 192662 Service unit FRC-3/8-D-5M-O-MINI-A
Brand: Festo

Service unit FRC-3/8-D-5M-O-MINI-A

The Festo part number 192662 is a Series D mini industrial component functioning as a filter regulator without a pressure gauge combined with a proportional standard oil mist lubricator. It features a rotary knob with detent for actuator locking, a fully automatic condensate drain with a maximum condensate volume of 22 cm³, and a 5 µm filtration grade housed within a metal bowl guard. Operating within a pressure range of 0.2 MPa to 1.2 MPa and a regulation range of 0.5 bar to 12 bar, this unit achieves a normal nominal flow rate of 1050 l/min while maintaining a maximum pressure hysteresis of 0.02 MPa. Designed for vertical installation within ±5° using a G1/8 pressure gauge setup, it processes compressed air per ISO 8573-1:2010 [7:9:-] or inert gases across a medium temperature of -10 °C to 60 °C with CRC 2 corrosion resistance and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 192662
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 192662.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: Mini
Series: D
Actuator lock: Rotary knob with detent
Mounting position: Vertical ±5°
Condensate drain: Fully automatic
Structural design: Filter regulator without pressure gauge | Proportional standard oil mist lubricator
Max. condensate volume: 22 cm³
Grade of ltration: 5 µm
Bowl guard: Metal bowl guard
Pressure gauge: Set up for G1/8
Operating pressure: 0.2 MPa...1.2 MPa | 2 bar...12 bar
Pressure regulation range: 0.5 bar...12 bar
Max. pressure hysteresis: 0.02 MPa | 0.2 bar | 2.9 psi
Normal nominal ow rate (normalized to DIN 1343): 1050 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:9:-] | Inert gases
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Air quality class at the output: Compressed air as per ISO 8573-1:2010 [6:8:-] | Inert gases
Temperature of medium: -10 °C...60 °C
Ambient temperature: -10 °C...60 °C
Product weight: 660 g
Type of mounting: In-line installation | With accessories
Pneumatic connection 1: G3/8
Pneumatic connection 2: G3/8
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 192662. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
