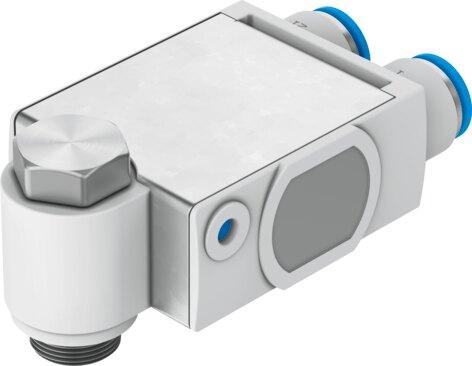

Reference imageConfirm configuration by manufacturer part number.
Festo
1927027
Non return valve VBNF-LBA-G14-Q8-F1A
This Festo industrial component, part number 1927027, features an unlockable check valve function with pneumatic actuation and a non-detenting manual exhaust function. It operates within a pressure range of 0.02 MPa to 1 MPa (0.2 bar to 10 bar or 2.9 psi to 145 psi) using compressed air as per ISO 8573-1:2010 [7:4:4], and includes a QS-8 pneumatic connection 1, a G1/4 pneumatic connection 2, and a QS-8 pilot air port 21. Built with a PBT housing for screw-in mounting in any position, the unit delivers a standard flow rate 1->2 (6-0) of 1100 l/min and a standard nominal flow rate 1->2 (6-5) of 620 l/min across an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1927027
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1927027.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Unlockable check valve function
- Selection of additional function
- Manual exhaust
- Pneumatic connection 1
- QS-8
- Pneumatic connection 2
- G1/4
- Pilot air port 21
- QS-8
- Type of mounting
- Screw-in
- Operating pressure
- 0.02 MPa...1 MPa | 0.2 bar...10 bar
- Pilot pressure MPa
- 0.2 MPa...1 MPa
- Pilot pressure
- 2 bar...10 bar
- Pilot pressure psi
- 29 psi...145 psi
- Ambient temperature
- -10 °C...60 °C
- Housing material
- PBT
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Mounting position
- Any
- Actuation type, piloted non-return function
- Pneumatic
- Manual exhaust function
- Non-detenting
- Rotatability
- 360 deg/continuous swiveling not permissible
- Operating pressure for entire temperature range
- 0.02 MPa...1 MPa | 0.2 bar...10 bar | 2.9 psi...145 psi
- Standard ow rate 1->2 (6-0)
- 1100 l/min
- Standard nominal ow rate 1->2 (6-5)
- 620 l/min
- Switching time off
- 11 ms
- On switching time
- 8 ms
- Explosion prevention and protection
- Zone 2 (ATEX) | Zone 22 (ATEX)
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Temperature of medium
- -10 °C...60 °C
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1927027. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
