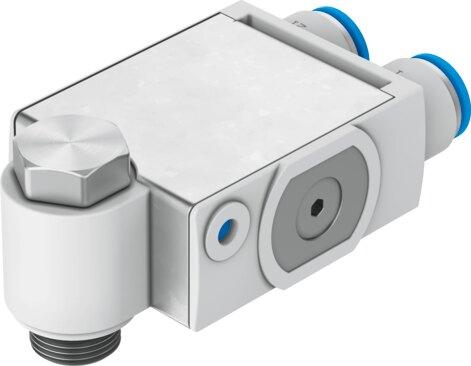

Reference imageConfirm configuration by manufacturer part number.
Festo
1927030
One-way flow control valve VFOF-LE-BAH-G14-Q8
The Festo 1927030 is an industrial component featuring an exhaust air flow control non-return function combined with a piloted check valve and a non-detenting manual exhaust function. It is equipped with a QS-8 pneumatic connection 1, a G1/4 pneumatic connection 2, a QS-8 pilot air port 21, an internal hex adjusting element, and screw-in mounting capability for installation in any position. This part delivers a standard nominal flow rate of 590 l/min in the flow control direction and 310 l/min to 540 l/min in the non-return direction across an operating pressure range of 0.02 MPa to 1 MPa (0.2 bar to 10 bar / 2.9 psi to 145 psi). Constructed with a PBT housing and ATEX certification for Zone 2 and Zone 22 explosion prevention, it operates within an ambient temperature range of -10 °C to 60 °C using a pilot pressure of 0.2 MPa to 1 MPa (2 bar to 10 bar / 29 psi to 145 psi). Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1927030
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1927030.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Exhaust air ow control non-return function
- Selection of additional function
- Piloted check valve
- Pneumatic connection 1
- QS-8
- Pneumatic connection 2
- G1/4
- Actuation type
- Manual
- Pilot air port 21
- QS-8
- Adjusting element
- Internal hex
- Type of mounting
- Screw-in
- Standard nominal ow rate in ow control direction
- 590 l/min
- Standard nominal ow rate in non-return direction
- 310 l/min...540 l/min
- Operating pressure
- 0.02 MPa...1 MPa | 0.2 bar...10 bar | 2.9 psi...145 psi
- Pilot pressure MPa
- 0.2 MPa...1 MPa
- Pilot pressure
- 2 bar...10 bar
- Pilot pressure psi
- 29 psi...145 psi
- Ambient temperature
- -10 °C...60 °C
- Housing material
- PBT
- Explosion prevention and protection
- Zone 2 (ATEX) | Zone 22 (ATEX)
- Mounting position
- Any
- Actuation type, piloted non-return function
- Pneumatic
- Manual exhaust function
- Non-detenting
- Rotatability
- 360 deg/continuous swiveling not permissible
- Operating pressure for entire temperature range
- 0.02 MPa...1 MPa | 0.2 bar...10 bar | 2.9 psi...145 psi
- Standard ow rate in ow control direction 6 -> 0 bar
- 940 l/min
- Standard ow rate actuated in non-return direction 0.6->0 MPa (6->0
- 830 l/min...1000 l/min
- Standard ow rate in non-return direction at 6 -> 0 bar unactuated
- 840 l/min...1000 l/min
- Standard nominal ow rate in non-return direction actuated
- 315 l/min...540 l/min
- Standard nominal ow rate in non-return direction, unactuated
- 310 l/min...540 l/min
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1927030. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
