Festo
192732

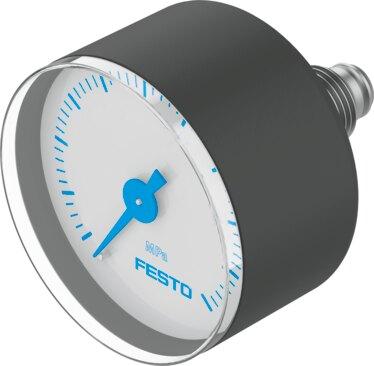

Pressure gauge MA-40-1-G1/8-MPA
The Festo 192732 is a Bourdon tube pressure gauge conforming to standard EN 837-1 with a nominal size of 40 and a display range of 0 MPa to 1 MPa. Designed for in-line installation with a centered rear G1/8 pneumatic connection, this component features brass wetted materials and a brass screwed plug to monitor inert gases and neutral liquids within a 0 bar to 10 bar operating pressure range. It operates within a medium and ambient temperature range of -20 °C to 60 °C, maintains a measurement accuracy class of 2.5 with an IP43 degree of protection, and includes ATEX certification for Zones 1, 2, 21, and 22. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 192732
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 192732.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 MPa...1 MPa
- Conforms to standard
- EN 837-1
- Pressure gauge nominal size
- 40
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar | 0 psi...145 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 2.5
- Degree of protection
- IP43
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- G1/8
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
- Housing material
- ABS
- Inspection window material
- PS
