Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

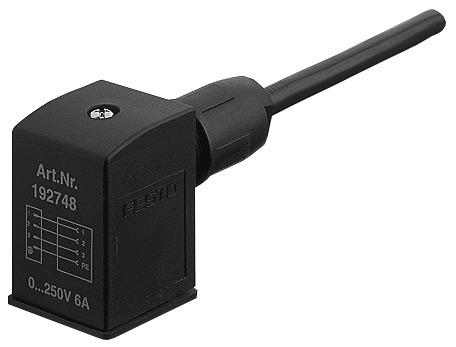

Reference imageConfirm configuration by manufacturer part number.
Festo
192748
Plug socket MSSD-C-S-M16
The Festo part number 192748 is a black PA industrial component weighing 38 g, featuring a 4-pin socket electrical connection with Form A configuration. Designed with an IP67 degree of protection as per IEC 60529, it mounts on an air solenoid valve via an M3 central screw in any mounting position and operates within an ambient temperature range of -25 °C to 90 °C. This unit accommodates a cable diameter of 5.5 mm to 8 mm, a nominal conductor cross section of 0.5 mm² to 1 mm², a contact durability of 10, and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 192748
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 192748.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Contact durability
- 10
- Type of mounting
- On air solenoid valve with M3 central screw
- Mounting position
- Any
- Product weight
- 38 g
- Electrical connection
- 4-pin | Socket | Form A
- Cable diameter
- 5.5 mm...8 mm
- Nominal conductor cross section
- 0.5 mm²...1 mm²
- Degree of protection
- IP67 | as per IEC 60529
- Ambient temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Housing material
- PA
- Housing colour
- Black
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 192748. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
