Festo
192964
Connecting cable SIM-M8-3GD-10-PU
The Festo 192964 is a 3-pin, 3-wire industrial component featuring a straight M8x1 socket and an open end with a 10 m standard cable. It supports an AC and DC operating voltage range of 0 V to 60 V, a current rating of 40° C at 4 A, and a surge resistance of 1.5 kV, while providing IP65 and IP68 degrees of protection. Conforming to EN 61076-2-104 and EN 61984 standards, the RoHS-compliant, halogen-free assembly operates within ambient temperatures from -25 °C to 80 °C and handles energy chain applications exceeding 5 million cycles at a 75 mm bending radius. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 192964
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 192964.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 61076-2-104 | EN 61984
- Electrical connection

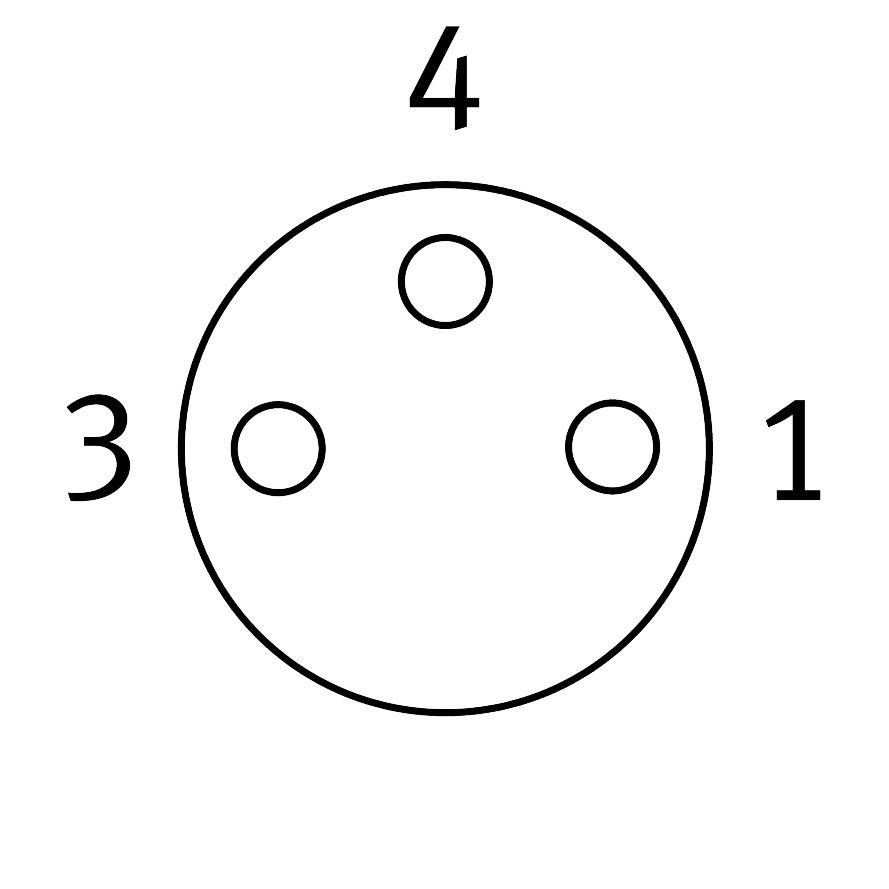

- 3-pin/3-wire | Straight socket/open end | M8x1 / -
- DC operating voltage range
- 0 V...60 V
- Operating voltage range AC
- 0 V...60 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 1.5 kV
- Cable length
- 10 m
- Cable characteristic
- Standard
- Connector cable test conditions
- Flexural strength: as per Festo standard | Test conditions on request | Energy chain > 5 million cycles, bending radius 75 mm
- Cable diameter
- 3.8 mm
- Cable design
- 3 x 0.25 mm²
- Nominal conductor cross section
- 0.25 mm²
- Wire insulation color code
- Blue | Brown | Black
- Degree of protection
- IP65 | IP68
- Ambient temperature
- -25 °C...80 °C
- Ambient temperature with exible cable installation
- -5 °C...80 °C
- CE marking (see declaration of conformity)
- As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions | To UK instructions for electrical equipment
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS-compliant | Halogen-free | Free of phosphoric acid ester
- Contamination level
- 3
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 192964. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
