Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
192965
Connecting cable SIM-M8-3WD-10-PU
The Festo 192965 is an industrial component featuring an angled M8x1 3-pin socket with a 10 m standard cable design of 3 x 0.25 mm² in blue, brown, and black wire insulation. Rated for 0 V to 60 V AC/DC operating voltage and 4 A current at 40° C, it conforms to EN 61076-2-104 and EN 61984 standards with IP65 and IP68 degrees of protection. The halogen-free, RoHS-compliant assembly withstands ambient temperatures from -25 °C to 80 °C and features energy chain capability exceeding 5 million cycles at a 75 mm bending radius. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 192965
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 192965.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 61076-2-104 | EN 61984
- Electrical connection

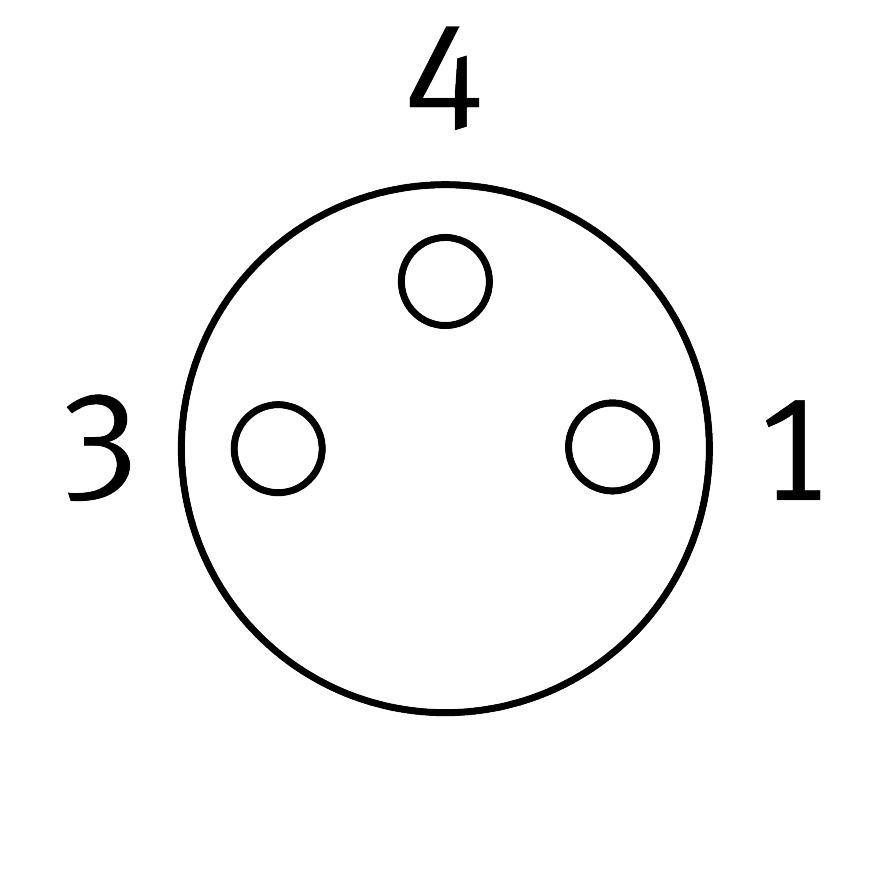

- 3-pin/3-wire | Angled socket/open end | M8x1 / -
- DC operating voltage range
- 0 V...60 V
- Operating voltage range AC
- 0 V...60 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 1.5 kV
- Cable length
- 10 m
- Cable characteristic
- Standard
- Connector cable test conditions
- Flexural strength: as per Festo standard | Test conditions on request | Energy chain > 5 million cycles, bending radius 75 mm
- Cable diameter
- 3.8 mm
- Cable design
- 3 x 0.25 mm²
- Nominal conductor cross section
- 0.25 mm²
- Wire insulation color code
- Blue | Brown | Black
- Degree of protection
- IP65 | IP68
- Ambient temperature
- -25 °C...80 °C
- Ambient temperature with exible cable installation
- -5 °C...80 °C
- CE marking (see declaration of conformity)
- As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions | To UK instructions for electrical equipment
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS-compliant | Halogen-free | Free of phosphoric acid ester
- Contamination level
- 3
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 192965. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
