Festo
192966

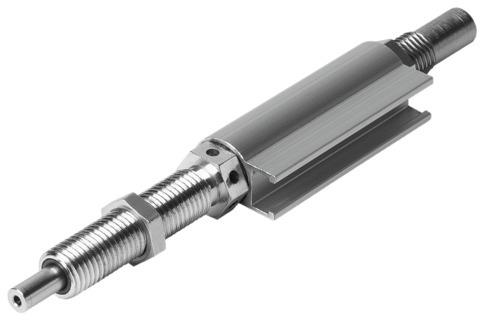

Stop element YSRWJ-8-14-A
The Festo 192966 industrial component is a single-acting, pushing-mode device featuring an 8 size, a 14 mm stroke, and self-adjusting cushioning with a soft characteristic curve. Weighing 110 g with a moderate corrosion resistance class (CRC 2) and VDMA24364-B2-L LABS conformity, it operates across an ambient temperature range of 0 °C to 60 °C in any mounting position. The unit delivers a maximum stop force of 500 N, absorbs up to 3 J of energy per stroke with 0.02 J max residual energy, and provides 0.03 mm precision adjustment alongside position sensing capability for proximity sensors. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 192966
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 192966.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 8
- Stroke
- 14 mm
- Cushioning
- Self-adjusting | Soft characteristic curve
- Mounting position
- Any
- Precision adjustment
- 0.03 mm
- Position sensing
- For proximity sensor
- Max. impact velocity
- 3 m/s
- Reset time at room temperature
- 0.2 s
- Reset time at min. ambient temperature
- 1 s
- Mode of operation
- Pushing | Single-acting
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 14 mm
- Max. stop force
- 500 N
- Max. energy absorption per stroke
- 3 J
- Max. energy absorption per hour
- 21000 J
- Max. residual energy
- 0.02 J
- Resetting force
- 3.5 N
- Product weight
- 110 g
- Type of mounting
- With lock nut
- Seals material
- NBR
- Housing material
- Brass | Nickel-plated
- Piston rod material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 192966. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
