Festo
192968

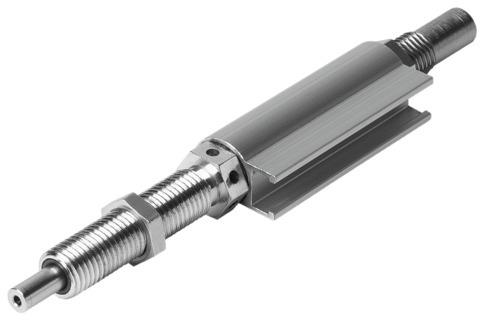

Stop element YSRWJ-5-8-A
The Festo 192968 is a size 5 single-acting pushing industrial component featuring an 8 mm stroke and self-adjusting cushioning with a soft characteristic curve. It supports any mounting position, provides a precision adjustment of 0.03 mm, and includes position sensing for a proximity sensor with a maximum impact velocity of 2 m/s. Weighing 45 g, this part operates in ambient temperatures from 0 °C to 60 °C, exhibits a moderate corrosion stress rating of CRC 2, and handles a maximum stop force of 200 N with an energy absorption capacity of 1 J per stroke up to 10000 J per hour. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 192968
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 192968.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 5
- Stroke
- 8 mm
- Cushioning
- Self-adjusting | Soft characteristic curve
- Mounting position
- Any
- Precision adjustment
- 0.03 mm
- Position sensing
- For proximity sensor
- Max. impact velocity
- 2 m/s
- Reset time at room temperature
- 0.2 s
- Reset time at min. ambient temperature
- 1 s
- Mode of operation
- Pushing | Single-acting
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 8 mm
- Max. stop force
- 200 N
- Max. energy absorption per stroke
- 1 J
- Max. energy absorption per hour
- 10000 J
- Max. residual energy
- 0.01 J
- Resetting force
- 1 N
- Product weight
- 45 g
- Type of mounting
- With lock nut
- Seals material
- NBR
- Housing material
- Brass | Nickel-plated
- Piston rod material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 192968. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
