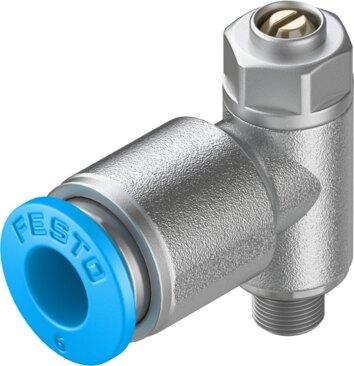

Name: Festo 193155 One-way flow control valve GRLZ-M5-QS-6-D
Brand: Festo

One-way flow control valve GRLZ-M5-QS-6-D

The Festo part number 193155 is an industrial component featuring a supply air flow control non-return function with a QS-6 pneumatic connection 1 and an M5 pneumatic connection 2. It utilizes a slotted screw adjusting element for screw-in mounting, providing a standard nominal flow rate of 115 l/min in the flow control direction and 70 l/min to 110 l/min in the non-return direction across an operating pressure range of 0.2 bar to 10 bar. Designed for compressed air operating media according to ISO 8573-1:2010 [7:4:4] with oil lubrication capability, this component operates within an ambient and medium temperature range of -10 °C to 60 °C and conforms to VDMA24364-B1/B2-L LABS conformity and ISO 14644-1 class 4 cleanroom suitability. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 193155
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 193155.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: Supply air ow control non-return function
Pneumatic connection 1: QS-6
Pneumatic connection 2: M5
Adjusting element: Slotted screw
Type of mounting: Screw-in
Standard nominal ow rate in ow control direction: 115 l/min
Standard nominal ow rate in non-return direction: 70 l/min...110 l/min
Ambient temperature: -10 °C...60 °C
Maritime classication: See certicate
Mounting position: Any
Operating pressure for entire temperature range: 0.2 bar...10 bar
Standard ow rate in ow control direction 6 -> 0 bar: 170 l/min
Standard ow rate in non-return direction at 6 -> 0 bar: 160 l/min...200 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1
Temperature of medium: -10 °C...60 °C
Nominal tightening torque: 0.8 Nm
Tolerance for nominal tightening torque: ±10%
Product weight: 13 g
Material of screwed plug: Brass
Note on materials: RoHS compliant
Seals material: NBR
Releasing ring material: POM
Material of adjusting screw: Brass
