Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

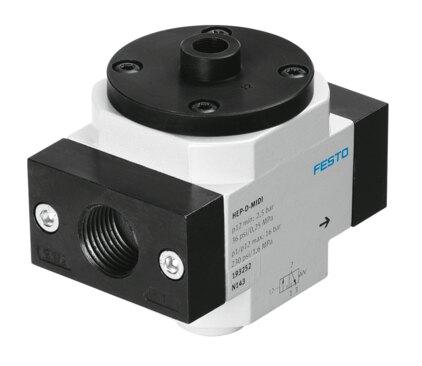

Reference imageConfirm configuration by manufacturer part number.
Festo
193252
On/off valve HEP-1/2-D-MIDI
The Festo 193252 is a pneumatic 3/2-way closed monostable industrial component featuring a piston gate valve structural design and a soft sealing principle. It operates at pressures from 0 bar to 16 bar with a pilot pressure range of 3 bar to 16 bar, delivering a normal nominal flow rate of 3900 l/min using compressed air or inert gases within a medium and ambient temperature range of -10 °C to 60 °C. Featuring a mechanical spring reset method, non-throttleable exhaust air function, and moderate corrosion resistance class (CRC) 2, this unit supports in-line installation or mounting with accessories. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 193252
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 193252.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Piston gate valve
- Actuation type
- Pneumatic
- Sealing principle
- Soft
- Exhaust air function
- Cannot be throttled
- Manual override
- None
- Reset method
- Mechanical spring
- Valve function
- 3/2-way, closed, monostable
- Operating pressure
- 0 MPa...1.6 MPa | 0 bar...16 bar
- Pilot pressure
- 3 bar...16 bar
- C value
- 16.6 l/sbar
- b-value
- 0.4
- Normal nominal ow rate (normalized to DIN 1343)
- 3900 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Type of mounting
- In-line installation | With accessories
- Mounting position
- Any
- Flow direction
- Non-reversible
- Product weight
- 500 g
- Pneumatic connection 1
- G1/2
- Pneumatic connection 2
- G1/2
- Pneumatic connection 3
- G1/4
- Pilot air port 12
- G1/8
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 193252. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
