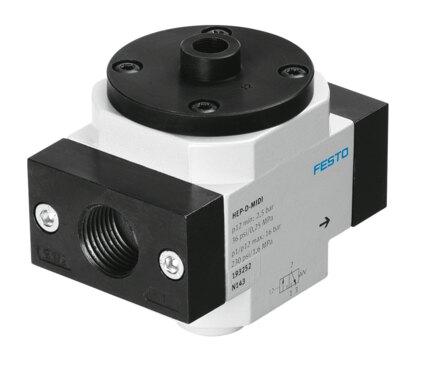

Reference imageConfirm configuration by manufacturer part number.
Festo
193259
On/off valve HEP-3/4-D-MAXI
The Festo 193259 is a pneumatic piston gate valve featuring a 3/2-way, closed, monostable valve function with soft sealing and a mechanical spring reset method. This component delivers a normal nominal flow rate of 6000 l/min, a C value of 28 l/sbar, a b-value of 0.32, and operates within a pressure range of 0 bar to 16 bar using compressed air or inert gases. Designed for in-line installation or mounting with accessories, the unit features a moderate corrosion resistance class (CRC 2), operates in temperatures from -10 °C to 60 °C, and allows for oil-lubricated operation. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 193259
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 193259.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Piston gate valve
- Actuation type
- Pneumatic
- Sealing principle
- Soft
- Exhaust air function
- Cannot be throttled
- Manual override
- None
- Reset method
- Mechanical spring
- Valve function
- 3/2-way, closed, monostable
- Operating pressure
- 0 MPa...1.6 MPa | 0 bar...16 bar
- Pilot pressure
- 3 bar...16 bar
- C value
- 28 l/sbar
- b-value
- 0.32
- Normal nominal ow rate (normalized to DIN 1343)
- 6000 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Type of mounting
- In-line installation | With accessories
- Mounting position
- Any
- Flow direction
- Non-reversible
- Product weight
- 800 g
- Pneumatic connection 1
- G3/4
- Pneumatic connection 2
- G3/4
- Pneumatic connection 3
- G3/8
- Pilot air port 12
- G1/8
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
