Festo
193536

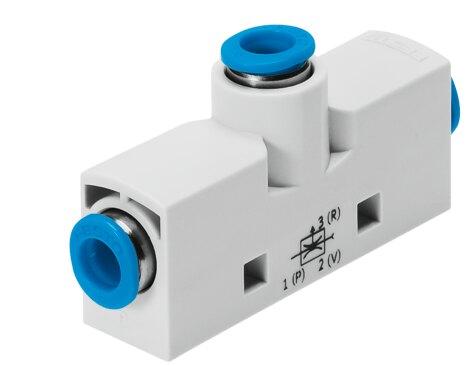

Vacuum generator VN-05-M-T3-PQ2-VQ2-RQ2
The Festo 193536 is a T-shaped inline industrial component featuring a 0.45 mm Laval nozzle width and a 14 mm width dimension, designed for high vacuum ejector characteristics with any mounting position. It operates within a pressure range of 1 bar to 8 bar, utilizing compressed air as per ISO 8573-1:2010 [7:4:4] without oil lubrication capability, delivering a maximum vacuum of 86% and a max suction rate of 6.1 l/min at atmospheric conditions. Weighing 22 g with a corrosion resistance class of 1 and a medium and ambient temperature range of 0 °C to 60 °C, this unit requires a maximum tightening torque of 0.5 Nm. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 193536
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 193536.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.45 mm
- Width dimension
- 14 mm
- Mounting position
- Any
- Ejector characteristics
- High vacuum | Inline
- Structural design
- T-shape
- Operating pressure for max. suction rate
- 6.3 bar
- Operating pressure
- 1 bar...8 bar
- Operating pressure for max. vacuum
- 6 bar
- Max. vacuum
- 86 %
- Nominal operating pressure
- 6 bar
- Max. suction rate with respect to atmosphere
- 6.1 l/min
- Air supply time at nominal operating pressure
- 4.7 s
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 0 °C...60 °C
- Ambient temperature
- 0 °C...60 °C
- Max. tightening torque
- 0.5 Nm
- Product weight
- 22 g
- Type of mounting
- With through-hole | With accessories
- Pneumatic connection 1
- QS-6
- Pneumatic connection 3
- QS-6
- Vacuum connection
- QS-6
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Female nozzle material
- POM
- Housing material
- Reinforced POM
- Material of jet nozzle
- Wrought aluminum alloy
- Material of pneumatic tting
- Brass
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 193536. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
