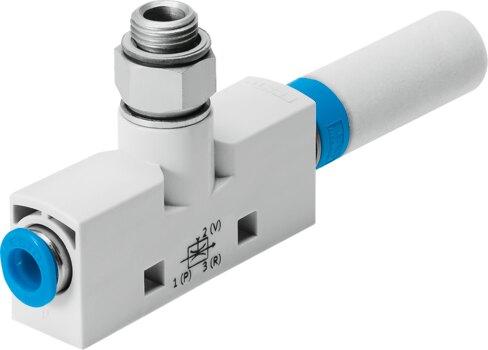

Reference imageConfirm configuration by manufacturer part number.
Festo
193610
Vacuum generator VN-07-L-T3-PQ2-VA4-RO1
Engineered with a 0.7 mm Laval nozzle nominal width and a 14 mm width dimension, this Festo industrial component features a T-shaped structural design with an open muffler construction and high suction flow ejector characteristics. It operates within a pressure range of 1 bar to 8 bar, delivering a maximum suction rate of 38.8 l/min with respect to the atmosphere at a 6.2 bar operating pressure for max suction rate. The unit functions with compressed air as per ISO 8573-1:2010 [7:4:4] across a medium and ambient temperature range of 0 °C to 60 °C, while prohibiting oil lubrication and maintaining a noise level of 66 dB(A) at the 6 bar nominal operating pressure. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 193610
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 193610.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.7 mm
- Width dimension
- 14 mm
- Muffler construction type
- Open
- Mounting position
- Any
- Ejector characteristics
- High suction ow | Standard
- Integrated function
- Muffler open
- Structural design
- T-shape
- Operating pressure for max. suction rate
- 6.2 bar
- Operating pressure
- 1 bar...8 bar
- Nominal operating pressure
- 6 bar
- Max. suction rate with respect to atmosphere
- 38.8 l/min
- Air supply time at nominal operating pressure
- 0.5 s
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 0 °C...60 °C
- Noise level at nominal operating pressure
- 66 dB(A)
- Ambient temperature
- 0 °C...60 °C
- Max. tightening torque
- 0.5 Nm
- Product weight
- 26 g
- Type of mounting
- With through-hole | With accessories
- Pneumatic connection 1
- QS-6
- Pneumatic connection 3
- Muffler open
- Vacuum connection
- G1/8
- Material of connecting thread
- Wrought aluminum alloy | Brass, nickel-plated
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Female nozzle material
- POM
