193619

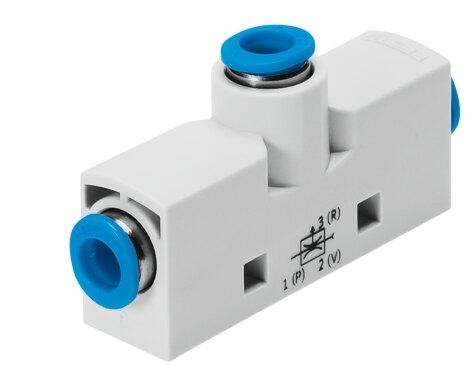

Name: Festo 193619 Vacuum generator VN-05-N-T3-PQ2-VQ2-RQ2
Brand: Festo

Vacuum generator VN-05-N-T3-PQ2-VQ2-RQ2

The Festo part number 193619 is an inline T-shape industrial component featuring a 0.45 mm Laval nozzle width and a 14 mm width dimension, designed for high suction flow ejector characteristics. Operating within a pressure range of 1 bar to 8 bar with a nominal operating pressure of 6 bar, it delivers a maximum suction rate of 12 l/min relative to the atmosphere and an air supply time of 1.57 s. Weighing 22 g, this unit accommodates any mounting position via a through-hole or accessories, utilizes a QS-6 pneumatic connection 1, and operates with compressed air according to ISO 8573-1:2010 [7:4:4] within a medium and ambient temperature range of 0 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 193619
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 193619.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width of Laval nozzle: 0.45 mm
Width dimension: 14 mm
Mounting position: Any
Ejector characteristics: High suction ow | Inline
Structural design: T-shape
Operating pressure for max. suction rate: 6 bar
Operating pressure: 1 bar...8 bar
Nominal operating pressure: 6 bar
Max. suction rate with respect to atmosphere: 12 l/min
Air supply time at nominal operating pressure: 1.57 s
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication not possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Temperature of medium: 0 °C...60 °C
Ambient temperature: 0 °C...60 °C
Max. tightening torque: 0.5 Nm
Product weight: 22 g
Type of mounting: With through-hole | With accessories
Pneumatic connection 1: QS-6
Pneumatic connection 3: QS-6
Vacuum connection: QS-6
Note on materials: RoHS compliant
Seals material: NBR
Female nozzle material: POM
Housing material: Reinforced POM
Material of jet nozzle: Wrought aluminum alloy
Material of pneumatic tting: Brass | Nickel-plated

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 193619. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
