Festo
193790

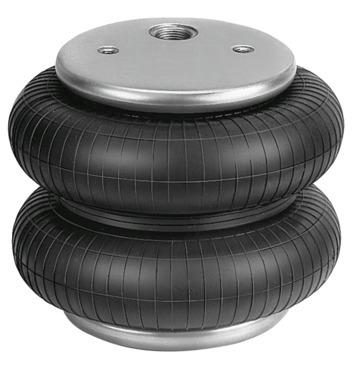

Bellow cylinder EB-325-215
Engineered by Festo, the part number 193790 is a single-acting industrial component featuring a size 325 designation, a 215 mm stroke, and a required installation diameter of 340 mm. This unit operates within a pressure range of 0 MPa to 0.8 MPa (0 bar to 8 bar) using compressed air conforming to ISO 8573-1:2010 [-:-:4] without oil lubrication, while accommodating an ambient temperature range of -40 °C to 70 °C. It weighs 4800 g, incorporates G1/4 pneumatic connections, utilizes internal thread mounting, and achieves a resetting force of 300 N with a maximum advanced height of 305 mm and a minimum installation height of 75 mm. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 193790
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 193790.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 325
- Required installation Ø
- 340 mm
- Stroke
- 215 mm
- Max. height, advanced
- 305 mm
- Max. angle of inclination
- 20 deg
- Max. offset
- 20 mm
- Min. installation height
- 75 mm
- Mounting position
- Any
- Mode of operation
- Single-acting
- Operating pressure
- 0 MPa...0.8 MPa | 0 bar...8 bar | 0 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -40 °C...70 °C
- Resetting force
- 300 N
- Product weight
- 4800 g
- Type of mounting
- With internal thread
- Pneumatic connection
- G1/4
- Note on materials
- RoHS compliant
- Bellows material
- NR/BR
- Housing material
- Steel | Galvanized
