Festo
193791

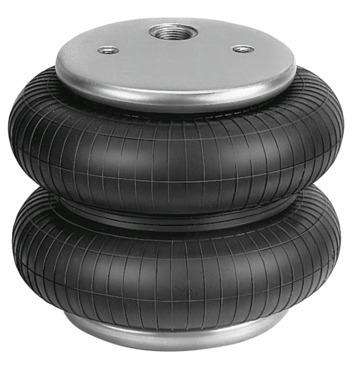

Bellow cylinder EB-385-230
The Festo size 385 industrial component is a single-acting pneumatic part featuring a 230 mm stroke, a 400 mm required installation diameter, and an operating pressure range of 0 MPa to 0.8 MPa (0 bar to 8 bar, 0 psi to 116 psi). Engineered for installation in any mounting position via internal thread, this unit operates with compressed air per ISO 8573-1:2010 [-:-:4] without oil lubrication and withstands ambient temperatures from -40 °C to 70 °C. It exhibits a 6900 g product weight, 400 N resetting force, CRC 2 moderate corrosion resistance, and accommodates a maximum height of 310 mm when advanced, a 20-degree maximum angle of inclination, and a 20 mm maximum offset. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 193791
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 193791.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 385
- Required installation Ø
- 400 mm
- Stroke
- 230 mm
- Max. height, advanced
- 310 mm
- Max. angle of inclination
- 20 deg
- Max. offset
- 20 mm
- Min. installation height
- 77 mm
- Mounting position
- Any
- Mode of operation
- Single-acting
- Operating pressure
- 0 MPa...0.8 MPa | 0 bar...8 bar | 0 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -40 °C...70 °C
- Resetting force
- 400 N
- Product weight
- 6900 g
- Type of mounting
- With internal thread
- Pneumatic connection
- G1/4
- Note on materials
- RoHS compliant
- Bellows material
- NR/BR
- Housing material
- Steel | Galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 193791. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
