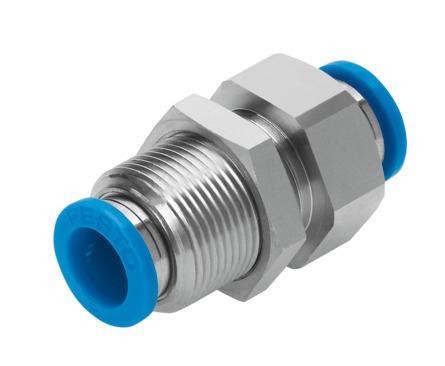

Reference imageConfirm configuration by manufacturer part number.
Festo
193951
Push-in bulkhead connector QSS-6-F
The Festo 193951 is a standard bulkhead industrial component featuring a push-pull structural design with a nominal width of 4 mm and a 17 mm tubing insertion depth for 6 mm outside diameter pneumatic tubing on both connections. It operates with compressed air or liquid water across an ambient temperature range of -10 °C to 80 °C, supporting temperature-dependent pressures up to 1.4 MPa and a low corrosion stress rating of CRC 1. This pack size of 10 includes a blue releasing ring, weighs 30.56 g per unit, and offers any mounting position with cleanroom suitability to ISO Class 4. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 193951
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 193951.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 4 mm
- Tubing insertion depth
- 17 mm
- Mounting position
- Any
- Design
- Bulkhead
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 30.56 g
- Pneumatic connection 1
- For pneumatic tubing outside diameter 6 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Releasing ring material
- POM
- Nut material
- Brass, nickel-plated
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
