Festo
193969

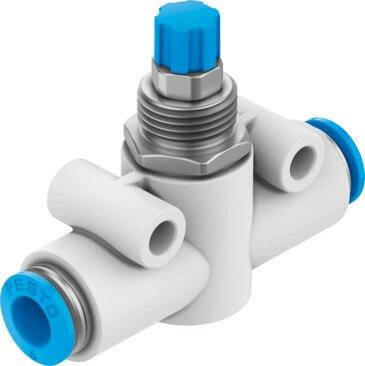

One-way flow control valve GR-QS-6
The Festo part number 193969 is a 22 g industrial component featuring a one-way flow control function with QS-6 pneumatic connections on both ports. Constructed with a PA-reinforced housing, NBR seals, and a POM releasing ring, it operates within a pressure range of 0.2 bar to 10 bar and temperatures from -10 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:4:4]. This unit provides a standard nominal flow rate of 245 l/min in the flow control direction and 430 l/min in the non-return direction, and includes ATEX certification for Zones 1, 2, 21, and 22. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 193969
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 193969.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- One-way ow control function
- Pneumatic connection 1
- QS-6
- Pneumatic connection 2
- QS-6
- Adjusting element
- Knurled screw
- Type of mounting
- Alternatively: | Front panel mounting | With through-hole | With accessories
- Standard nominal ow rate in ow control direction
- 245 l/min
- Standard nominal ow rate in non-return direction
- 430 l/min
- Operating pressure
- 0.2 bar...10 bar
- Ambient temperature
- -10 °C...60 °C
- Housing material
- PA-reinforced
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Mounting position
- Any
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Product weight
- 22 g
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Releasing ring material
- POM
- Knurled head material
- PA-reinforced
