Festo
193972

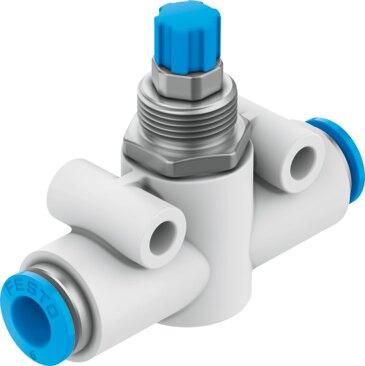

Throttle valve GRO-QS-4
This Festo industrial component provides a flow control function featuring QS-4 pneumatic connections for both port one and port two. The unit operates within a pressure range of 0 bar to 10 bar and delivers a standard nominal flow rate of 110 l/min in the flow control direction alongside 165 l/min in the non-return direction. Constructed with a PA-reinforced housing and NBR seals, it weighs 12 g and supports mounting via front panel, through-hole, or accessories in any position. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 193972
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 193972.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Flow control function
- Pneumatic connection 1
- QS-4
- Pneumatic connection 2
- QS-4
- Adjusting element
- Knurled screw
- Type of mounting
- Alternatively: | Front panel mounting | With through-hole | With accessories
- Standard nominal ow rate in ow control direction
- 110 l/min
- Standard nominal ow rate in non-return direction
- 165 l/min
- Operating pressure
- 0 bar...10 bar
- Ambient temperature
- -10 °C...60 °C
- Housing material
- PA-reinforced
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Mounting position
- Any
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Product weight
- 12 g
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Releasing ring material
- POM
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 193972. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
