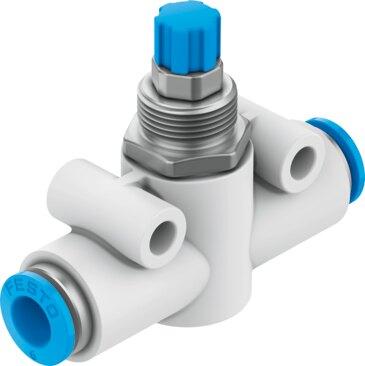

Name: Festo 193973 Throttle valve GRO-QS-6
Brand: Festo

Throttle valve GRO-QS-6

The Festo 193973 is a flow control industrial component featuring QS-6 pneumatic connections on both ports and a manual knurled screw adjusting element. Built with a PA-reinforced housing, NBR seals, and a POM releasing ring, this 22 g valve operates from 0 bar to 10 bar within an ambient and medium temperature range of -10 °C to 60 °C. It delivers a standard nominal flow rate of 245 l/min in the flow control direction and 430 l/min in the non-return direction using compressed air as per ISO 8573-1:2010 [7:4:4]. Designed for mounting via front panel, through-hole, or accessories in any position, it supports ATEX explosion protection for zones 1, 2, 21, and 22. Submit the exact part number, quantity, and application requirements for an RFQ quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 193973
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 193973.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: Flow control function
Pneumatic connection 1: QS-6
Pneumatic connection 2: QS-6
Adjusting element: Knurled screw
Type of mounting: Alternatively: | Front panel mounting | With through-hole | With accessories
Standard nominal ow rate in ow control direction: 245 l/min
Standard nominal ow rate in non-return direction: 430 l/min
Operating pressure: 0 bar...10 bar
Ambient temperature: -10 °C...60 °C
Housing material: PA-reinforced
Explosion prevention and protection: Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Mounting position: Any
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Temperature of medium: -10 °C...60 °C
Product weight: 22 g
Note on materials: RoHS compliant
Seals material: NBR
Releasing ring material: POM
