1939785

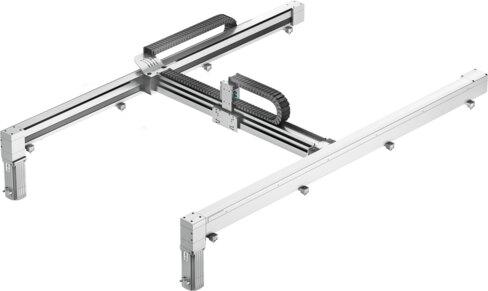

Name: Festo 1939785 Planar surface gantry EXCH-60-
Brand: Festo

Planar surface gantry EXCH-60-

The Festo part number 1939785 is a size 60 planar surface gantry featuring a 100% duty cycle, a rated load of 6 kg with maximum dynamic response, and an operating pressure of 8 bar. It delivers a maximum horizontal speed of 5 m/s, a maximum vertical speed of 3 m/s, a maximum horizontal acceleration of 50 m/s², a maximum vertical acceleration of 30 m/s², and a repetition accuracy of ±0.1 mm, with mounting via slot nuts, adjusting kits, or mounting kits in either a horizontal or vertical position. Certified with CE marking as per the EU machinery directive, UKCA marking to UK instructions for machines, and LABS conformity to VDMA24364 Zone III, it operates within an ambient temperature range of 10 °C to 50 °C, a storage temperature of -10 °C to 60 °C, a non-condensating relative air humidity of 0 to 90%, an IP40 degree of protection, and an 81 dB(A) noise level. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1939785
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1939785.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 60
Mounting position: Vertical | Horizontal
Structural design: Planar surface gantry
Operating pressure: 8 bar
Max. horizontal acceleration: 50 m/s²
Max. vertical acceleration: 30 m/s²
Max. horizontal speed: 5 m/s
Max. vertical speed: 3 m/s
Repetition accuracy: ±0.1 mm
Duty cycle: 100%
CE marking (see declaration of conformity): as per EU machinery directive
UKCA marking (see declaration of conformity): To UK instructions for machines
LABS (PWIS) conformity: VDMA24364 Zone III
Storage temperature: -10 °C...60 °C
Relative air humidity: 0 - 90% | Non-condensating
Noise level: 81 dB(A)
Degree of protection: IP40
Ambient temperature: 10 °C...50 °C
Rated load with maximum dynamic response: 6 kg
Type of mounting: With mounting kit | With adjusting kit | With slot nuts
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 1939785. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
