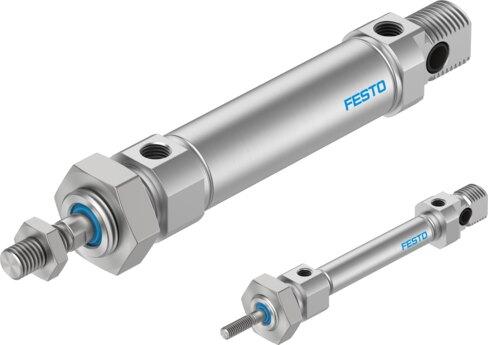

Reference imageConfirm configuration by manufacturer part number.
Festo
193986
ISO cylinder DSNU-8- -
The Festo 193986 is a double-acting industrial component featuring an 8 mm piston diameter and a variable stroke ranging from 1 mm to 100 mm, constructed with a piston, piston rod, and cylinder barrel. It operates within a pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar) utilizing elastic cushioning rings or pads at both ends, accommodates any mounting position, and conforms to CETOP RP 52 P and ISO 6432 standards. Certified for explosive atmospheres with ATEX and UKEX markings for Gas Zone 1 and Dust Zones 21 and 22, this unit includes position sensing via proximity switch and supports multiple variants including weld spatter protection, low friction, and stroke adjustment advancing. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 193986
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 193986.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...100 mm
- Piston diameter
- 8 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Conforms to standard
- CETOP RP 52 P | ISO 6432
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Stroke adjustment advancing | Weld spatter protection | Special thread on piston rod | Piston rod with external hexagon | Additional slide, standard, on left | Low friction for balancer applications | Bearing cover without mounting thread | Swiveling rod eye mounting on the end cap | Uniform, slow movement | Low friction | Through, hollow piston rod | Additional PTFE piston guide
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Mode of operation
- Double-acting
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
