Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

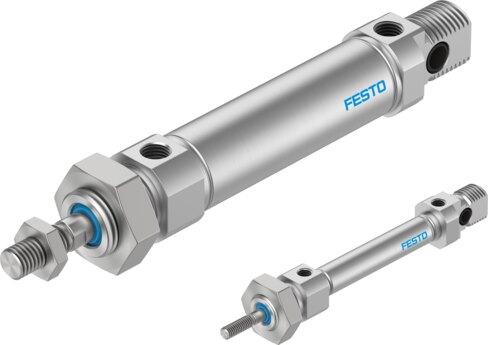

Reference imageConfirm configuration by manufacturer part number.
Festo
193987
ISO cylinder DSNU-10- -
The Festo part number 193987 is a double-acting industrial component featuring a 10 mm piston diameter, an adjustable stroke ranging from 1 mm to 100 mm, and elastic cushioning rings or pads at both ends. Built with a piston, piston rod, and cylinder barrel, this unit supports any mounting position, position sensing via proximity switch, and an operating pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar). It conforms to ISO 6432 and CETOP RP 52 P standards while carrying CE and UKCA markings for explosive atmospheres, including ATEX and UKEX certifications for gas Zone 1 and dust Zone 21. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 193987
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 193987.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...100 mm
- Piston diameter
- 10 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Conforms to standard
- CETOP RP 52 P | ISO 6432
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Stroke adjustment advancing | Weld spatter protection | Special thread on piston rod | Piston rod with external hexagon | Additional slide, standard, on left | Low friction for balancer applications | Bearing cover without mounting thread | Swiveling rod eye mounting on the end cap | Uniform, slow movement | Low friction | Through, hollow piston rod | Additional PTFE piston guide
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Mode of operation
- Double-acting
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 193987. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
