Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

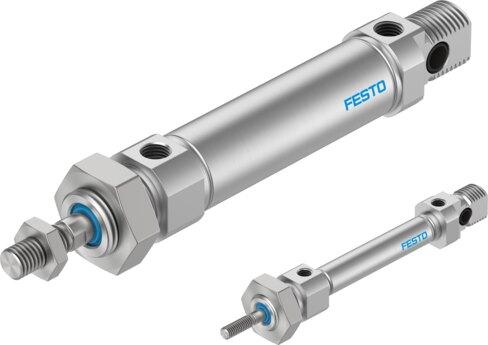

Reference imageConfirm configuration by manufacturer part number.
Festo
193988
ISO cylinder DSNU-12- -
The Festo 193988 is a double-acting industrial component featuring a 12 mm piston diameter and an adjustable stroke length from 1 mm to 200 mm, conforming to ISO 6432 and CETOP RP 52 P standards. Operating within a pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar), this piston-rod cylinder incorporates both elastic cushioning rings and adjustable pneumatic cushioning at both ends for flexible installation in any mounting position. Certified for hazardous environments with ATEX and UKEX compliance for Zones 1, 2, and 21, it supports position sensing via proximity switch alongside numerous available variants including chemical resistance and weld spatter protection. Submit part number 193988, quantity, and application requirements to receive an official quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 193988
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 193988.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...200 mm
- Piston diameter
- 12 mm
- Cushioning
- Elastic cushioning rings/pads at both ends | Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- CETOP RP 52 P | ISO 6432
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Increased chemical resistance | Weld spatter protection | Special thread on piston rod | Piston rod with external hexagon | Additional slide, standard, on left | Low friction for balancer applications | Bearing cover without mounting thread | Swiveling rod eye mounting on the end cap | Module for reaching a specic end position in case of a pressure failure | Transverse load increased | Reinforced piston rod | Uniform, slow movement | Low friction | Through, hollow piston rod | Additional PTFE piston guide
- Protection against torsion/guide
- Square piston rod
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Mode of operation
- Double-acting
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 193988. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
