Festo
193994

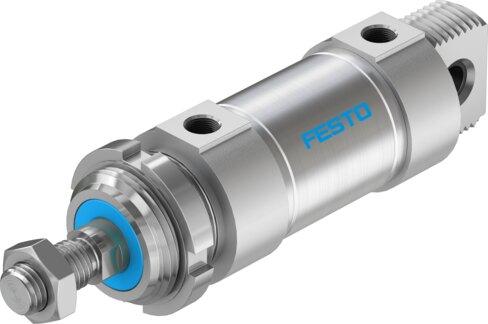

Round cylinder DSNU-50- -
The Festo 193994 is a double-acting industrial component featuring a 50 mm piston diameter and a variable stroke ranging from 1 mm to 500 mm. It operates at pressures between 0.1 MPa and 1 MPa (1 bar to 10 bar) in any mounting position and includes position sensing via proximity switch. Certified for Zone 1 (ATEX) and Zone 1 (UKEX) with compliance to EU explosion protection and UK EX instructions, this unit supports multiple variants including weld spatter protection, low friction, and adjustable pneumatic cushioning at both ends. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 193994
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 193994.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...500 mm
- Piston diameter
- 50 mm
- Cushioning
- Elastic cushioning rings/pads at both ends | Self-adjusting pneumatic end-position cushioning | Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Stroke adjustment advancing | Weld spatter protection | Extended external thread piston rod | Internal thread on piston rod | Special thread on piston rod | Piston rod with external hexagon | Additional slide, standard, on left | Low friction for balancer applications | Bearing cover without mounting thread | Swiveling rod eye mounting on the end cap | Metal scraper | Module for reaching a specic end position in case of a pressure failure | Transverse load increased | High corrosion protection | Reinforced piston rod | Uniform, slow movement | Low friction | Through, hollow piston rod | Additional PTFE piston guide
- Protection against torsion/guide
- Square piston rod
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX)
