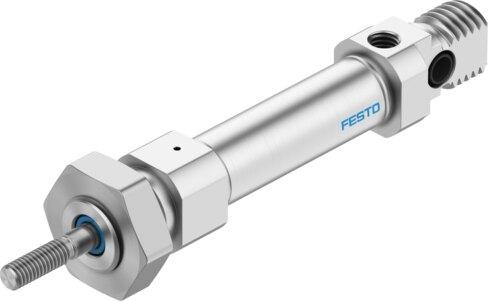

Reference imageConfirm configuration by manufacturer part number.
Festo
193997
ISO cylinder ESNU-10- -
The Festo 193997 is a single-acting industrial component featuring a 10 mm piston diameter, an adjustable stroke ranging from 1 mm to 50 mm, and elastic cushioning rings or pads at both ends. Designed with a piston, piston rod, and cylinder barrel, this unit operates on compressed air compliant with ISO 8573-1:2010 [7:4:4] at pressures between 0.15 MPa and 1 MPa. It conforms to CETOP RP 52 P and ISO 6432 standards, offers a corrosion resistance class of 2 for moderate stress, and supports an ambient temperature range of -20 °C to 120 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 193997
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 193997.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...50 mm
- Piston diameter
- 10 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Conforms to standard
- CETOP RP 52 P | ISO 6432
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Extended external thread piston rod | Piston rod with external thread shortened at one end | Extended piston rod | Axial supply port | Piston rod at one end
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Mode of operation
- Pushing | Single-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...120 °C
- Impact energy in the end positions
- 0.05 J
- Theoretical force at 6 bar, advancing
- 36 N...37 N
- Moving mass at 0 mm stroke
- 8.5 g
- Additional moving mass per 10 mm stroke
- 1 g
- Basic weight with 0 mm stroke
- 37.3 g
- Additional weight per 10 mm stroke
- 2.7 g
- Type of mounting
- With accessories
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 193997. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
