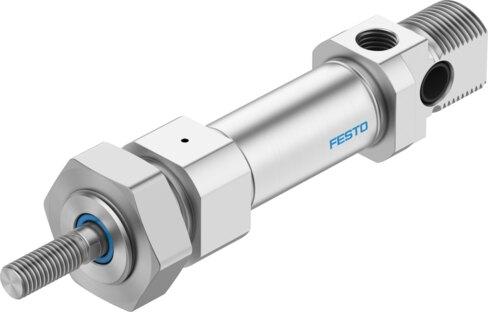

Reference imageConfirm configuration by manufacturer part number.
Festo
194000
ISO cylinder ESNU-20- -
The Festo part number 194000 is a single-acting industrial pneumatic cylinder featuring a 20 mm piston diameter, an adjustable stroke range from 1 mm to 50 mm, and pushing operation conforming to CETOP RP 52 P and ISO 6432 standards. This component operates at pressures between 0.12 MPa and 1 MPa utilizing compressed air meeting ISO 8573-1:2010 [7:4:4] standards, featuring elastic cushioning rings at both ends, position sensing via proximity switch, and a corrosion resistance class rating of 2 for moderate stress environments. It delivers a theoretical advancing force of 151 N to 156 N at 6 bar across an ambient temperature range of -20 °C to 120 °C, and is available in multiple rod and port variants including options for oil lubrication. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 194000
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 194000.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...50 mm
- Piston diameter
- 20 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Conforms to standard
- CETOP RP 52 P | ISO 6432
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Extended external thread piston rod | Internal thread on piston rod | Piston rod with external thread shortened at one end | Extended piston rod | Axial supply port | Piston rod at one end
- Operating pressure
- 0.12 MPa...1 MPa | 1.2 bar...10 bar
- Mode of operation
- Pushing | Single-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...120 °C
- Impact energy in the end positions
- 0.2 J
- Theoretical force at 6 bar, advancing
- 151 N...156 N
- Moving mass at 0 mm stroke
- 44 g
- Additional moving mass per 10 mm stroke
- 4 g
- Basic weight with 0 mm stroke
- 186.8 g
- Additional weight per 10 mm stroke
- 7.2 g
- Type of mounting
- With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 194000. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
