Festo
194111

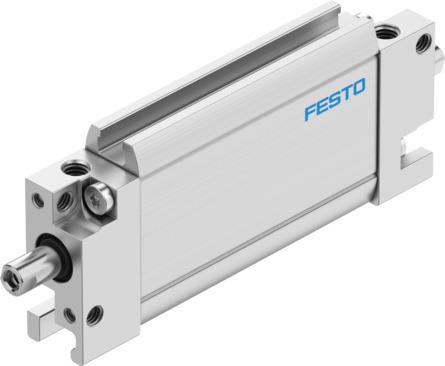

Flat cylinder DZF-1/2"- -P-A-S6
The Festo part number 194111 is a double-acting industrial component featuring a 1/2" piston diameter, an oval piston providing torsion protection and guidance, and a stroke length ranging from 0.04 in to 8 in with a maximum piston rod rotation angle of +/- 2.5 degrees. Operating within a pressure range of 0.16 MPa to 1 MPa and temperatures from 0 °C to 120 °C, this unit utilizes compressed air per ISO 8573-1:2010 [7:4:4] with elastic cushioning rings at both ends and aluminum cover material. It delivers a theoretical force of 51 N retracting and 68 N advancing at 6 bar, with a basic weight of 96 g at 0 mm stroke and a 10-32 UNF-2B pneumatic connection. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 194111
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 194111.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 0.04 in...8 in
- Piston diameter
- 1/2"
- Max. angle of rotation of the piston rod +/-
- 2.5 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mode of operation
- Double-acting
- Protection against torsion/guide
- Oval piston
- Operating pressure
- 0.16 MPa...1 MPa | 1.6 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...120 °C
- Theoretical force at 6 bar, retracting
- 51 N
- Theoretical force at 6 bar, advancing
- 68 N
- Moving mass at 0 mm stroke
- 12 g
- Additional moving mass per 10 mm stroke
- 270 g
- Additional weight per 10 mm stroke
- 2 g
- Basic weight with 0 mm stroke
- 96 g
- Pneumatic connection
- 10-32 UNF-2B
- Cover material
- Aluminum
- Seals material
- FPM | TPE-U(PU)
- Housing material
- Wrought aluminum alloy
- Piston rod material
- High-alloy stainless steel
