Festo
194112

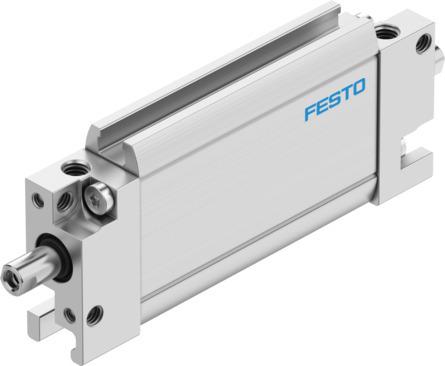

Flat cylinder DZF-1/2"- -P-A-S2
The Festo 194112 is a double-acting industrial component featuring a 1/2" piston diameter, an oval piston providing torsion protection, and a stroke length adjustable from 0.04 in to 8 in with a maximum piston rod rotation angle of plus or minus 2.5 degrees. Operating within a pressure range of 1.6 bar to 10 bar using ISO 8573-1:2010 [7:4:4] compressed air, this unit achieves a theoretical force of 51 N at 6 bar for both advancing and retracting strokes. It is constructed with a wrought aluminum alloy housing, aluminum cover, high-alloy stainless steel piston rod, and FPM and TPE-U(PU) seals, incorporating elastic cushioning rings at both ends and supporting an ambient temperature range of -20 °C to 80 °C. Submit part number 194112 along with your required quantity and operational specifications to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 194112
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 194112.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 0.04 in...8 in
- Piston diameter
- 1/2"
- Max. angle of rotation of the piston rod +/-
- 2.5 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mode of operation
- Double-acting
- Protection against torsion/guide
- Oval piston
- Operating pressure
- 0.16 MPa...1 MPa | 1.6 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Theoretical force at 6 bar, retracting
- 51 N
- Theoretical force at 6 bar, advancing
- 51 N
- Pneumatic connection
- 10-32 UNF-2B
- Cover material
- Aluminum
- Seals material
- FPM | TPE-U(PU)
- Housing material
- Wrought aluminum alloy
- Piston rod material
- High-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 194112. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
