Festo
194159

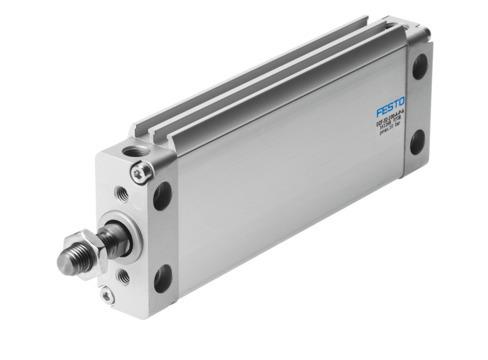

Flat cylinder DZF-1"-1/2"-A-P-A
Festo part number 194159 is a double-acting industrial component featuring a 1-inch piston diameter, a 0.5-inch stroke, and an oval piston providing protection against torsion within a +/- 1 degree maximum angle of rotation. It operates on compressed air conforming to ISO 8573-1:2010 [7:4:4] at pressures from 1 bar to 10 bar, utilizing elastic cushioning rings at both ends and FPM and TPE-U(PU) seals within an aluminum cover. The unit delivers a theoretical retracting force of 247 N and advancing force of 295 N at 6 bar, while maintaining a moderate corrosion resistance class (CRC 2) and an ambient temperature range of -20 °C to 80 °C. Request a quote today by submitting your exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 194159
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 194159.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 0.5 in
- Piston diameter
- 1"
- Max. angle of rotation of the piston rod +/-
- 1 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mode of operation
- Double-acting
- Protection against torsion/guide
- Oval piston
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Theoretical force at 6 bar, retracting
- 247 N
- Theoretical force at 6 bar, advancing
- 295 N
- Moving mass at 0 mm stroke
- 40 g
- Additional weight per 10 mm stroke
- 6 g
- Basic weight with 0 mm stroke
- 168 g
- Pneumatic connection
- 10-32 UNF-2B
- Cover material
- Aluminum
- Seals material
- FPM | TPE-U(PU)
- Housing material
- Wrought aluminum alloy
- Piston rod material
- High-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 194159. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
