Festo
194165

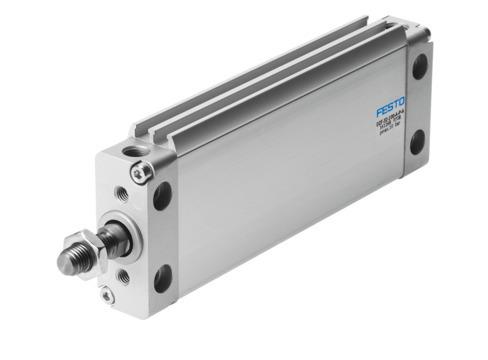

Flat cylinder DZF-1"-5"-A-P-A
The Festo 194165 is a double-acting industrial component featuring a 1-inch piston diameter and a 5-inch stroke, equipped with elastic cushioning rings at both ends and an oval piston for torsion protection within a +/- 1-degree rotation angle. Designed with an aluminum cover, FPM and TPE-U seals, and 10-32 UNF-2B pneumatic connections, it operates at pressures between 1 bar and 10 bar using compressed air meeting ISO 8573-1:2010 [7:4:4] standards within an ambient temperature range of -20 °C to 80 °C. At 6 bar, the unit delivers a theoretical retracting force of 247 N and an advancing force of 295 N, maintaining a basic weight of 168 g with a moving mass of 40 g at 0 mm stroke and a CRC rating of 2 for moderate corrosion resistance. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 194165
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 194165.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 5 in
- Piston diameter
- 1"
- Max. angle of rotation of the piston rod +/-
- 1 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mode of operation
- Double-acting
- Protection against torsion/guide
- Oval piston
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Theoretical force at 6 bar, retracting
- 247 N
- Theoretical force at 6 bar, advancing
- 295 N
- Moving mass at 0 mm stroke
- 40 g
- Additional weight per 10 mm stroke
- 6 g
- Basic weight with 0 mm stroke
- 168 g
- Pneumatic connection
- 10-32 UNF-2B
- Cover material
- Aluminum
- Seals material
- FPM | TPE-U(PU)
- Housing material
- Wrought aluminum alloy
- Piston rod material
- High-alloy stainless steel
