Festo
194204

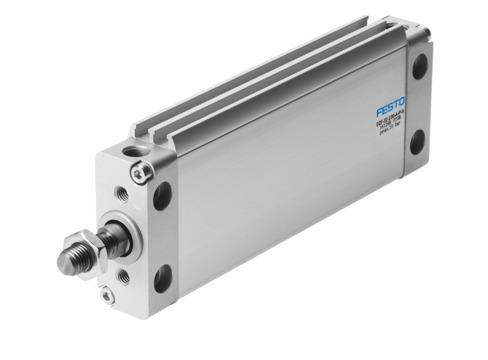

Flat cylinder DZF-1 5/8"- -A-P-A-S6
The Festo part number 194204 is a double-acting industrial component featuring a 1 5/8" piston diameter, an oval piston providing torsion protection and guidance within a +/- 0.6 degree max angle of rotation, and elastic cushioning rings or pads at both ends. Operating on compressed air per ISO 8573-1:2010 [7:4:4] within a 1 bar to 10 bar pressure range and 0 °C to 120 °C ambient temperature, it delivers a theoretical advancing force of 754 N and retracting force of 633 N at 6 bar. The unit incorporates a 1/8 NPT pneumatic connection, aluminum cover material, and a corrosion resistance class of CRC 2. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 194204
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 194204.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 0.04 in...13 in
- Piston diameter
- 1 5/8"
- Max. angle of rotation of the piston rod +/-
- 0.6 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mode of operation
- Double-acting
- Protection against torsion/guide
- Oval piston
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...120 °C
- Theoretical force at 6 bar, retracting
- 633 N
- Theoretical force at 6 bar, advancing
- 754 N
- Moving mass at 0 mm stroke
- 120 g
- Additional moving mass per 10 mm stroke
- 180 g
- Additional weight per 10 mm stroke
- 16 g
- Basic weight with 0 mm stroke
- 480 g
- Pneumatic connection
- 1/8 NPT
- Cover material
- Aluminum
- Seals material
- FPM | TPE-U(PU)
- Housing material
- Wrought aluminum alloy
- Piston rod material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 194204. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
