194212

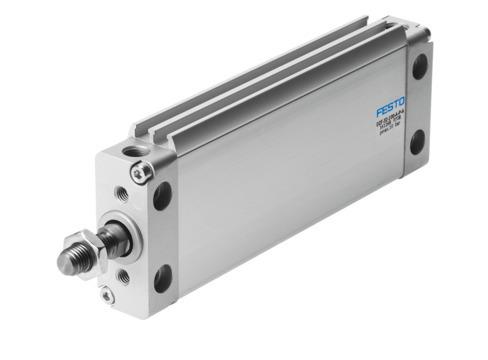

Name: Festo 194212 Flat cylinder DZF-1 5/8"-2"-A-P-A
Brand: Festo

Flat cylinder DZF-1 5/8"-2"-A-P-A

The Festo part number 194212 is a double-acting industrial component featuring a 2-inch stroke and a 1 5/8-inch piston diameter with an oval piston providing torsion protection and a maximum piston rod rotation angle of plus or minus 0.6 degrees. Operating within a pressure range of 1 bar to 10 bar utilizing compressed air in accordance with ISO 8573-1:2010 [7:4:4], this aluminum-covered unit delivers a theoretical retracting force of 633 N and advancing force of 754 N at 6 bar. It incorporates elastic cushioning rings at both ends, a 1/8 NPT pneumatic connection, a CRC rating of 2 for moderate corrosion stress, and functions across an ambient temperature range of -20 °C to 80 °C with optional oil lubrication. Submit the exact part number, quantity, and application requirements for a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 194212
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 194212.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 2 in
Piston diameter: 1 5/8"
Max. angle of rotation of the piston rod +/-: 0.6 deg
Cushioning: Elastic cushioning rings/pads at both ends
Mode of operation: Double-acting
Protection against torsion/guide: Oval piston
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -20 °C...80 °C
Theoretical force at 6 bar, retracting: 633 N
Theoretical force at 6 bar, advancing: 754 N
Moving mass at 0 mm stroke: 120 g
Additional moving mass per 10 mm stroke: 24 g
Additional weight per 10 mm stroke: 16 g
Basic weight with 0 mm stroke: 480 g
Pneumatic connection: 1/8 NPT
Cover material: Aluminum
Seals material: FPM | TPE-U(PU)
Housing material: Wrought aluminum alloy
Piston rod material: High-alloy steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 194212. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
