Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

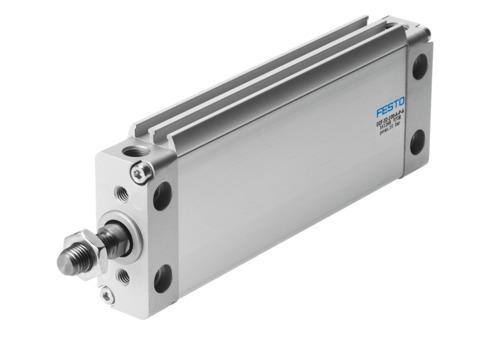

Reference imageConfirm configuration by manufacturer part number.
Festo
194213
Flat cylinder DZF-1 5/8"-3"-A-P-A
The Festo part number 194213 is a double-acting industrial component featuring a 1 5/8" piston diameter, a 3 in stroke, and an oval piston providing integrated protection against torsion with a maximum piston rod rotation angle of +/- 0.6 deg. Built with an aluminum cover and elastic cushioning rings or pads at both ends, this unit operates within a pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], and delivers a theoretical force of 754 N advancing and 633 N retracting at 6 bar. It exhibits a CRC 2 moderate corrosion stress rating, a basic weight of 480 g with a moving mass of 120 g at 0 mm stroke, a 1/8 NPT pneumatic connection, and functions across an ambient temperature range of -20 °C to 80 °C. Request a quote today by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 194213
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 194213.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 3 in
- Piston diameter
- 1 5/8"
- Max. angle of rotation of the piston rod +/-
- 0.6 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mode of operation
- Double-acting
- Protection against torsion/guide
- Oval piston
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Theoretical force at 6 bar, retracting
- 633 N
- Theoretical force at 6 bar, advancing
- 754 N
- Moving mass at 0 mm stroke
- 120 g
- Additional moving mass per 10 mm stroke
- 9 g
- Additional weight per 10 mm stroke
- 16 g
- Basic weight with 0 mm stroke
- 480 g
- Pneumatic connection
- 1/8 NPT
- Cover material
- Aluminum
- Seals material
- FPM | TPE-U(PU)
- Housing material
- Wrought aluminum alloy
- Piston rod material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 194213. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
