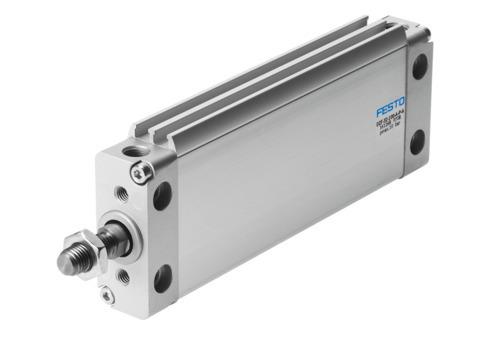

Reference imageConfirm configuration by manufacturer part number.
Festo
194217
Flat cylinder DZF-1 5/8"-8"-A-P-A
The Festo part number 194217 is a double-acting industrial component featuring a 1 5/8-inch piston diameter, an 8-inch stroke, and an oval piston providing protection against torsion with a maximum piston rod rotation angle of plus or minus 0.6 degrees. Designed with an aluminum cover and elastic cushioning rings or pads at both ends, this unit operates within a pressure range of 1 bar to 10 bar using compressed air according to ISO 8573-1:2010 [7:4:4] and delivers a theoretical force of 754 N advancing and 633 N retracting at 6 bar. It functions across an ambient temperature range of -20 °C to 80 °C, maintains a CRC rating of 2 for moderate corrosion stress, and has a basic weight of 480 g at 0 mm stroke with a 1/8 NPT pneumatic connection. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 194217
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 194217.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 8 in
- Piston diameter
- 1 5/8"
- Max. angle of rotation of the piston rod +/-
- 0.6 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mode of operation
- Double-acting
- Protection against torsion/guide
- Oval piston
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Theoretical force at 6 bar, retracting
- 633 N
- Theoretical force at 6 bar, advancing
- 754 N
- Moving mass at 0 mm stroke
- 120 g
- Additional moving mass per 10 mm stroke
- 9 g
- Additional weight per 10 mm stroke
- 16 g
- Basic weight with 0 mm stroke
- 480 g
- Pneumatic connection
- 1/8 NPT
- Cover material
- Aluminum
- Seals material
- FPM | TPE-U(PU)
- Housing material
- Wrought aluminum alloy
- Piston rod material
- High-alloy steel
