Festo
194240

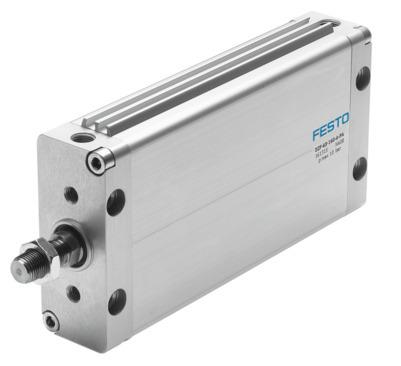

Flat cylinder DZF-2"-3"-A-P-A
The Festo 194240 is a double-acting industrial component featuring a 2-inch piston diameter, a 3-inch stroke, and an oval piston providing torsion protection within a +/- 0.5-degree rotation angle limit. Constructed with an aluminum cover and elastic cushioning rings at both ends, it operates on compressed air according to ISO 8573-1:2010 [7:4:4] at pressures from 1 to 10 bar, delivering theoretical forces of 990 N retracting and 1178 N advancing at 6 bar. This unit has a basic weight of 854 g, a 1/4 NPT pneumatic connection, a CRC rating of 2 for moderate corrosion stress, and functions across an ambient temperature range of -20 °C to 80 °C with oil lubrication possible. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 194240
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 194240.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 3 in
- Piston diameter
- 2"
- Max. angle of rotation of the piston rod +/-
- 0.5 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mode of operation
- Double-acting
- Protection against torsion/guide
- Oval piston
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Theoretical force at 6 bar, retracting
- 990 N
- Theoretical force at 6 bar, advancing
- 1178 N
- Moving mass at 0 mm stroke
- 219 g
- Additional moving mass per 10 mm stroke
- 24 g
- Additional weight per 10 mm stroke
- 25 g
- Basic weight with 0 mm stroke
- 854 g
- Pneumatic connection
- 1/4 NPT
- Cover material
- Aluminum
- Seals material
- FPM | TPE-U(PU)
- Housing material
- Wrought aluminum alloy
- Piston rod material
- High-alloy steel
