194266

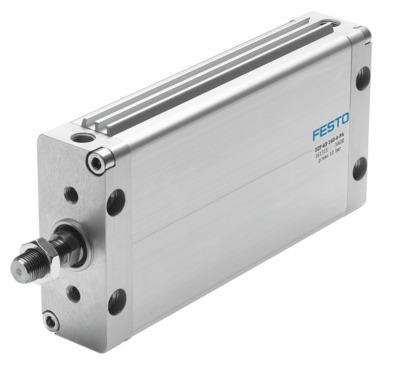

Name: Festo 194266 Flat cylinder DZF-2 1/2"-2"-A-P-A
Brand: Festo

Flat cylinder DZF-2 1/2"-2"-A-P-A

The Festo 194266 is a double-acting industrial component featuring a 2 1/2-inch piston diameter, a 2-in stroke, and an oval piston that provides an anti-torsion guide with a maximum piston rod rotation angle of +/- 0.4 deg. Built with an aluminum cover and elastic cushioning rings or pads at both ends, this unit operates within a pressure range of 1 bar to 10 bar using compressed air conforming to ISO 8573-1:2010 [7:4:4], delivering a theoretical retracting force of 1682 N and an advancing force of 1870 N at 6 bar. At 0 mm stroke, the basic weight is 1379 g with a moving mass of 337 g, utilizing a 1/4 NPT pneumatic connection and functioning across an ambient temperature range of -20 °C to 80 °C with moderate corrosion stress resistance (CRC 2) and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 194266
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 194266.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 2 in
Piston diameter: 2 1/2"
Max. angle of rotation of the piston rod +/-: 0.4 deg
Cushioning: Elastic cushioning rings/pads at both ends
Mode of operation: Double-acting
Protection against torsion/guide: Oval piston
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -20 °C...80 °C
Theoretical force at 6 bar, retracting: 1682 N
Theoretical force at 6 bar, advancing: 1870 N
Moving mass at 0 mm stroke: 337 g
Additional moving mass per 10 mm stroke: 40 g
Additional weight per 10 mm stroke: 25 g
Basic weight with 0 mm stroke: 1379 g
Pneumatic connection: 1/4 NPT
Cover material: Aluminum
Seals material: FPM | TPE-U(PU)
Housing material: Wrought aluminum alloy
Piston rod material: High-alloy steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 194266. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
