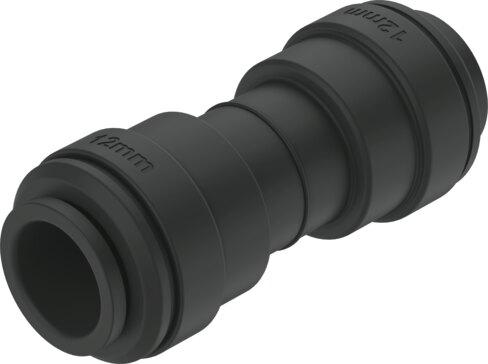

Reference imageConfirm configuration by manufacturer part number.
Festo
194586
Push-in connector CQ-28
The Festo part number 194586 is a 90 g industrial component featuring a 24.9 mm nominal width and a push-pull structural design with a pack size of 1. Constructed with a POM housing and releasing ring, high-alloy stainless steel tube retaining claw, and RoHS compliant materials, this unit supports pneumatic connections for 28 mm outside diameter tubing on both connection 1 and connection 2. It operates with compressed air as per ISO 8573-1:2010 [7:-:-] across an ambient temperature range of -25 °C to 70 °C, handling operating pressures from -0.95 bar to 7 bar for the entire temperature range and up to 10 bar in temperature-dependent conditions. The component achieves a corrosion resistance class of CRC 2 for moderate corrosion stress, VDMA24364 Zone III LABS conformity, and allows any mounting position with oil lubrication permitted for further use. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 194586
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 194586.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 24.9 mm
- Mounting position
- Any
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.95 bar...7 bar
- Temperature-dependent operating pressure
- -0.95 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -25 °C...70 °C
- Product weight
- 90 g
- Pneumatic connection 1
- For piping system/pneumatic tubing outside diameter of 28 mm
- Pneumatic connection 2
- for piping system/pneumatic tubing outside diameter of 28 mm
- Note on materials
- RoHS compliant
- Housing material
- POM
- Releasing ring material
- POM
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 194586. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
