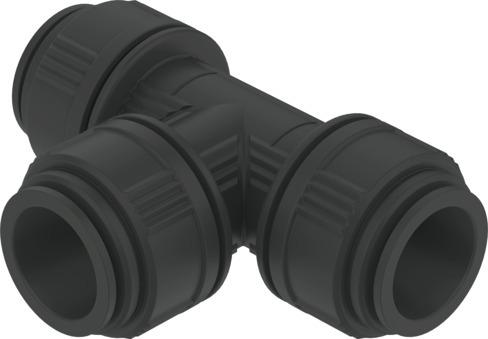

Reference imageConfirm configuration by manufacturer part number.
Festo
194588
Push-in T-connector CQT-28
The Festo 194588 industrial component features a structural design based on the push-pull principle with a nominal width of 24.9 mm, two outlets, and one supply line accommodating 28 mm outside diameter pneumatic tubing. Constructed with a POM housing and releasing ring, this 152 g unit operates on compressed air according to ISO 8573-1:2010 [7:-:-] across an ambient temperature range of -25 °C to 70 °C and handles operating pressures from -0.95 bar to 10 bar depending on temperature. It achieves a CRC 2 moderate corrosion stress rating, features VDMA24364 Zone III LABS conformity, and supports oil lubrication for further use while complying with RoHS material standards. Submit the exact part number, quantity, and application requirements to request a formal quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 194588
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 194588.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 24.9 mm
- Mounting position
- Any
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.95 bar...7 bar
- Temperature-dependent operating pressure
- -0.95 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -25 °C...70 °C
- Product weight
- 152 g
- No. of outlets
- 2
- No. of supply lines
- 1
- Pneumatic connection 1
- For piping system/pneumatic tubing outside diameter of 28 mm
- Pneumatic connection 2
- for piping system/pneumatic tubing outside diameter of 28 mm
- Note on materials
- RoHS compliant
- Housing material
- POM
- Releasing ring material
- POM
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 194588. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
