Festo
1956054

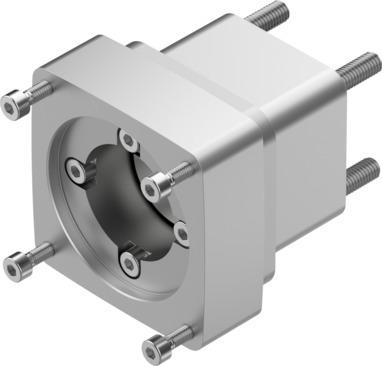

Axial kit EAMM-A-D32-60P
The Festo part number 1956054 is an industrial component featuring a nominal length of 59.7 mm, a product weight of 410 g, and a mass moment of inertia of 5.87 kgmm². It accommodates a transferable torque of 6.5 Nm and a maximum rotational speed of 8000 rpm while utilizing a D32 or D32C actuator interface code and a 60P motor input interface code. Built with RoHS-compliant materials and VDMA24364-B2-L LABS conformity, this unit operates in ambient temperatures from -10 °C to 60 °C, storage temperatures from -25 °C to 60 °C, and relative air humidity levels of 0 to 95% with an IP40 degree of protection in any mounting position. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1956054
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1956054.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 59.7 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95 %
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 5.87 kgmm²
- Transferable torque
- 6.5 Nm
- Product weight
- 410 g
- Interface code, actuator
- D32 | D32C
- Interface code, motor in
- 60P
- Note on materials
- RoHS-compliant
