195740

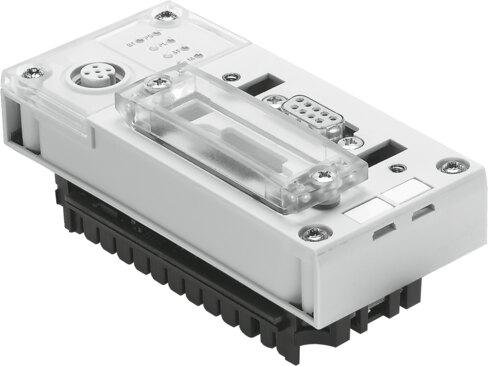

Name: Festo 195740 Bus node CPX-FB13
Brand: Festo

Bus node CPX-FB13

The Festo part number 195740 is a Proﬁbus DP industrial component featuring dimensions of 50 mm x 107 mm x 50 mm including the interlinking block and a product weight of 115 g. Constructed with a reinforced PA and PC housing providing IP65 and IP67 protection, this device supports a maximum address capacity of 64 bytes for both inputs and outputs alongside a baud rate ranging from 96 to 12000 kbit/s. Operational parameters include an ambient temperature range of -5 °C to 50 °C, LED status displays for power, bus, and system diagnostics, and DIL switch control elements. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 195740
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 195740.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Protocol: Probus DP
Dimensions W x L x H: (incl. interlinking block) | 50 mm x 107 mm x 50 mm
Product weight: 115 g
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...70 °C
Degree of protection: IP65 | IP67
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Housing material: PA-reinforced | PC
LED display (product-specic): M: Modify, parameterization | PL: Load supply | PS: electronics supply, sensor supply | SF: System fault
LED display (bus-specic): BF: Bus error
Device-specic diagnostics: Channel-oriented and module-oriented diagnostics | Undervoltage of modules | Diagnostic memory
Control elements: DIL switch
Fieldbus interface: 2x M12x1, 5-pin, B-coded | Sub-D socket, 9-pin | Customizable Sub-D plug
Max. address capacity inputs: 64 byte
Max. address capacity outputs: 64 byte
Parameterization: Diagnostic behavior | Fail-safe response | forcing of channels | Signal setup | System Parameters
Baud rate: 96 ... 12000 kbit/s
Conguration support: GSD le
Additional functions: Acyclic data access via "DPV1" | Channel-based diagnostics via eldbus | Start-up parameterization in plain text via eldbus
