195752

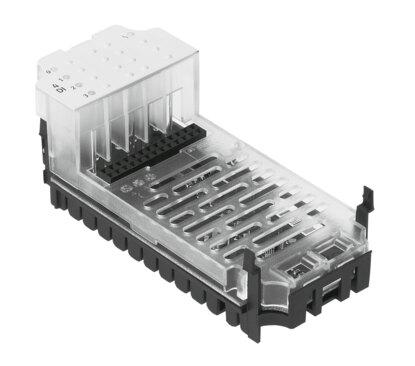

Name: Festo 195752 Input module CPX-4DE
Brand: Festo

Input module CPX-4DE

The Festo 195752 is an industrial component featuring four PNP inputs with IEC1131-T2 characteristics, operating on a nominal 24 V DC voltage range of 18 V to 30 V with a typical intrinsic current consumption of 15 mA. Housed in PA-reinforced and PC materials measuring 50 mm by 107 mm by 50 mm and weighing 39 g, this module includes four channel status LED indicators, one group diagnostics indicator, and short-circuit or overload diagnostics per channel. It operates in ambient temperatures between -5 °C and 50 °C, features a corrosion resistance class of 1, and offers parameterization for input debounce time, signal extension time, short-circuit response, and module monitoring. Submit the exact part number, quantity, and application requirements for an RFQ quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 195752
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 195752.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Dimensions W x L x H: (incl. interlinking block and connection system) | 50 mm x 107 mm x 50 mm
Product weight: 39 g
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...70 °C
Degree of protection: Depending on terminal block
Corrosion resistance class (CRC): 1 - Low corrosion stress | (installed)
LABS (PWIS) conformity: VDMA24364-B2-L
Housing material: PA-reinforced | PC
LED indicators: 1 group diagnostics | 4 channel status
Diagnostics: Short circuit/overload per channel
Parameterization: Input debounce time | Signal extension time | Response to short circuit | Module monitoring
DC operating voltage range: 18 V...30 V
Nominal operating voltage DC: 24 V
Intrinsic current consumption at nominal operating voltage: Type. 15 mA
No. of inputs: 4
Input characteristics: IEC1131-T2
Switching level: Signal 0: <= 5 V | Signal 1: >= 11 V
Input switching logic: PNP (positive switching)
Input debounce time: 3 ms (0.1 ms, 10 ms, 20 ms parameterizable)
Max. residual current of inputs per module: 0.7 A
Electrical isolation between channels: No
Electrical isolation between channel and internal bus: No
Fuse protection (short circuit): Internal electronic fuse per module

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 195752. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
